A Complete Guide to Heavy-Duty Surface Preparation with Wire Cup Brushes
In metal fabrication, welding, and industrial maintenance, few tasks are as demanding as removing weld slag, rust, scale, and heavy surface contaminants. These jobs require aggressive, durable tools that can withstand high pressure and harsh conditions while delivering consistent results. Industrial cup brushes—particularly knotted wire cup brushes—are the go-to solution for these heavy-duty applications.
This guide covers everything you need to know about steel wire cup brushes: how they work, when to use knotted vs. crimped wire, how to select the right brush, and best practices for weld cleaning and scale removal.
At Shanghai Longguang Industrial Brush , we are a trusted wire brush manufacturer and supplier of industrial wire brushes , custom wire brushes , and deburring brushes for heavy-duty applications worldwide.
Note: Longguang is a manufacturer and exporter only. We do not provide local installation services.
1. What Are Industrial Cup Brushes?
Industrial cup brushes are rotary power tools with a cup-shaped steel body housing densely packed wire filaments. They are designed for mounting on angle grinders, high-speed drills, and other power tools . The cup shape provides a large contact area for efficient surface cleaning, while the wire filaments deliver aggressive cutting action .
Basic Construction
| Component |
Description |
Function |
| Cup base |
Steel or stamped metal body |
Houses wire filaments; connects to power tool |
| Wire filaments |
Crimped or knotted steel, stainless, or brass wire |
Performs cutting, cleaning, or deburring action |
| Threaded arbor |
Standard thread (e.g., M14, M16, 5/8"-11) |
Mounts to angle grinder spindle |
| Support ring |
Optional metal ring |
Provides stability; can be removed for more aggressive action
|
2. Knotted vs. Crimped Wire Cup Brushes
The wire configuration significantly affects the brush's cutting action and application.
Knotted Wire Cup Brushes
| Feature |
Benefit |
| Wire configuration |
Wires twisted into tight knots |
| Aggression |
Highest |
citation:10 |
| Best for |
Heavy weld spatter, thick scale, rust removal
|
| Material removal |
Aggressive |
| Tool life |
Long (knots protect wire from wear) |
| Applications |
Heavy-duty cleaning, weld cleaning, slag removal
|
Knotted wire cup brushes are ideal for heavy and aggressive brushing work . The twisted knot construction provides maximum impact force and is recommended for removing slag, rust, scale, and cleaning welded seams .
Crimped Wire Cup Brushes
| Feature |
Benefit |
| Wire configuration |
Wires are crimped (wavy) but not knotted |
| Aggression |
Moderate |
| Best for |
Lighter cleaning, surface preparation, finishing |
| Material removal |
Moderate |
| Tool life |
Moderate |
| Applications |
Lighter rust removal, paint stripping, surface blending |
3. Wire Material Selection Guide
| Wire Material |
Best For |
Key Benefit |
| Carbon steel |
General steel, cast iron |
Aggressive cutting, cost-effective
|
| Stainless steel |
Stainless steel, aluminum, critical surfaces |
No iron contamination, corrosion-resistant
|
| Brass / bronze |
Non-sparking, soft metals |
Safe for explosive environments, gentle on surfaces
|
| Phosphor bronze |
Light duty, delicate surfaces |
Soft touch, corrosion-resistant
|
For automotive manufacturing and aerospace applications, stainless steel wire brushes are often required to prevent iron contamination on critical components.
4. Industrial Cup Brush Selection Guide
Step 1: Identify Your Application
| Application |
Recommended Brush |
Wire Type |
Aggression |
| Heavy weld spatter removal |
Knotted wire cup brush |
Carbon or stainless steel |
Highest |
| Scale removal (heavy) |
Knotted wire cup brush |
Carbon steel |
Highest |
| General weld cleaning |
Crimped or knotted cup brush |
Carbon or stainless |
High to moderate |
| Rust removal |
Knotted wire cup brush |
Carbon steel |
Highest |
| Surface preparation (pre-paint) |
Crimped wire cup brush |
Carbon steel |
Moderate |
| Stainless steel weld cleaning |
Knotted stainless steel cup brush |
Stainless steel |
High |
Step 2: Choose Wire Diameter
| Wire Diameter |
Aggression |
Best For |
| 0.3-0.35mm |
Fine |
Light cleaning, finishing
|
| 0.5mm |
Medium |
General weld cleaning
|
| 0.6mm+ |
Coarse |
Heavy scale and spatter removal |
Step 3: Select Brush Diameter
| Brush Diameter |
Best For |
Compatible Tools |
| 65-75mm |
Detail work, smaller surfaces |
Angle grinders
|
| 80mm |
General weld cleaning |
Angle grinders (min. 180mm diameter)
|
| 100-125mm |
Large surfaces, production |
Large angle grinders
|
Step 4: Choose Thread / Arbor
| Thread Type |
Compatible Tools |
| M14 |
Common on European and Asian angle grinders
|
| M16 |
Larger angle grinders |
| 5/8"-11 |
Common on North American angle grinders |
| M22 |
Mini grinders
|
5. Operating Parameters for Cup Brushes
Recommended Peripheral Speeds
| Application |
Recommended Speed (m/s) |
Notes |
| Deburring |
25-35 m/s |
|
| Cleaning welding seams |
35-45 m/s |
|
| Removing scale |
35-45 m/s |
|
| Polishing |
30-40 m/s |
|
Speed Guidelines by Brush Diameter
| Brush Diameter |
Max RPM |
Typical RPM |
| 65mm |
12,500 RPM |
8,000-10,000
|
| 80mm |
9,000 RPM |
6,000-8,000
|
| 100mm |
8,500 RPM |
5,000-7,000
|
| 125mm |
8,500 RPM |
4,000-6,000
|
Optimizing Brushing Results
| Action |
Effect |
| Increase peripheral speed |
↑ Brushing effect
|
| Increase brush diameter |
↑ Brushing effect |
| Increase wire thickness |
↑ Brushing effect |
| Decrease bristle length |
↑ Brushing effect
|
Safety Notes
| Rule |
Why |
| Use with angle grinders of min. 180mm diameter |
Safety for larger brushes
|
| Only edge tips act on workpiece |
Proper technique prevents damage
|
| Never exceed max RPM |
Prevents brush disintegration |
| Wear eye protection |
Wire fragments can eject |
For cross hole deburring and precision deburring, cup brushes are not the primary choice—consider cross hole brushes or end brushes instead.
6. Common Applications
Weld Cleaning
| Task |
Brush Type |
Technique |
| Weld spatter removal |
Knotted wire cup brush |
35-45 m/s peripheral speed |
| Weld seam cleaning |
Knotted or crimped cup brush |
Light to moderate pressure |
| Oxide scale removal |
Knotted wire cup brush |
35-45 m/s
|
Surface Preparation
| Task |
Brush Type |
Technique |
| Rust removal |
Knotted wire cup brush |
Aggressive action |
| Paint stripping |
Crimped wire cup brush |
Moderate action |
| Pre-paint surface prep |
Crimped wire cup brush |
Consistent coverage |
Heavy Maintenance
| Task |
Brush Type |
Technique |
| Slag removal |
Knotted wire cup brush |
Heavy pressure
|
| Concrete residue removal |
Knotted wire cup brush |
Heavy action
|
| Varnish/paint removal |
Crimped or knotted |
Varies by coating |
For metal parts surface treatment, cup brushes are part of a complete surface preparation strategy.
7. Custom Wire Brushes
When standard cup brushes don't meet your requirements, custom wire brushes offer tailored solutions.
Customization Options
| Parameter |
Customization Range |
| Wire material |
Carbon steel, stainless, brass, phosphor bronze
|
| Wire diameter |
0.15mm to 1.0mm+ |
| Brush diameter |
Any size |
| Thread type |
Any standard or custom thread |
| Knot density |
Variable |
| Support ring |
With or without |
For custom industrial brushes, Longguang provides engineering support for unique applications.
8. Longguang's Cup Brush Solutions
Why Choose Longguang?
| Advantage |
Benefit |
| Complete range |
Knotted, crimped, custom wire brushes |
| Multiple wire materials |
Carbon steel, stainless steel, brass |
| Custom manufacturing |
Any diameter, thread, or wire type |

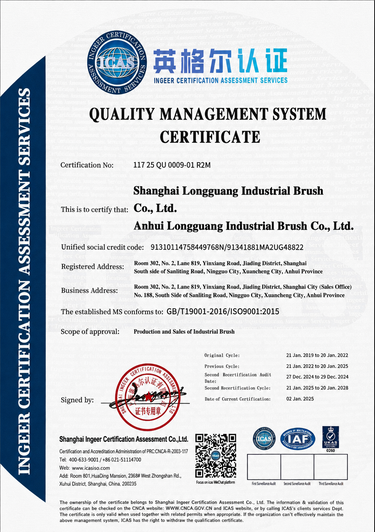

| ISO 9001:2015 certified |
Consistent quality |
| Technical support |
Application engineering for heavy-duty operations |
Conclusion
Industrial cup brushes—particularly knotted wire cup brushes—are essential tools for heavy-duty weld cleaning, scale removal, and surface preparation. Selecting the right wire material, diameter, and configuration ensures efficient, safe, and cost-effective operations.
Quick Selection Summary
| If You Need To... |
Recommended Brush |
| Remove heavy weld spatter |
Knotted wire cup brush (carbon steel) |
| Clean stainless steel welds |
Knotted stainless steel wire cup brush |
| Remove scale from steel |
Knotted wire cup brush (carbon steel) |
| Prepare surfaces for painting |
Crimped wire cup brush |
| Remove rust from cast iron |
Knotted wire cup brush |
| Work in explosive environment |
Brass wire cup brush |
Need industrial cup brushes for your welding or metalworking operation?
Send us your application, material, and tool specifications.
Our engineering team will recommend the right steel wire cup brush for your needs.
