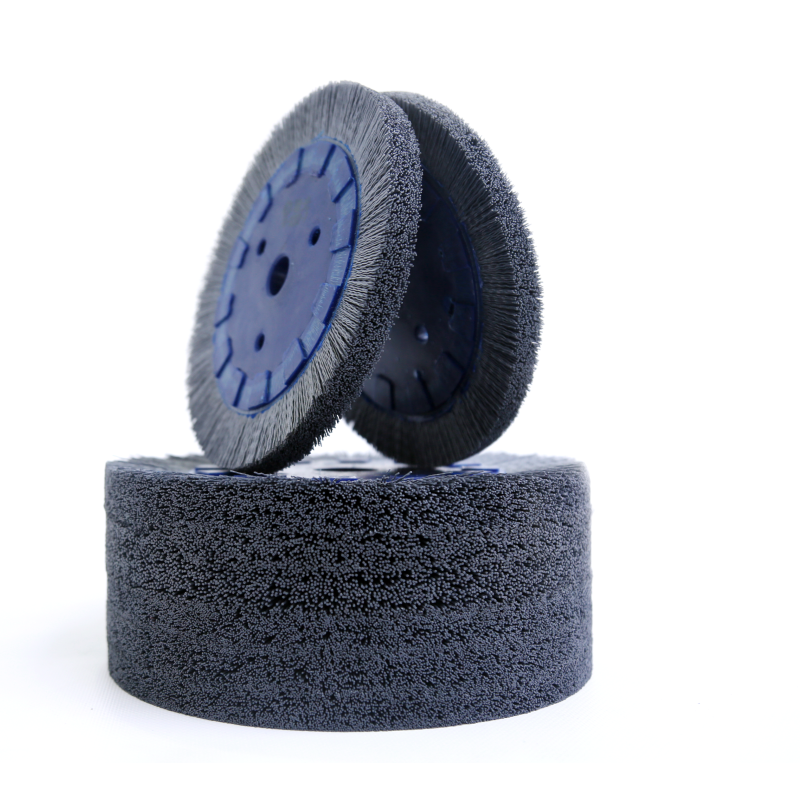

Silicon Carbide Abrasive Filament Stacked Disc Roller Brush | High-Density Filament Configuration for Aggressive Surface Finishing

Product Name:
Silicon Carbide Abrasive Filament Stacked Disc Roller Brush

Product Size:
Customizable according to customer requirements – outer diameter, working width and core dimensions fully tailored

Material Composition:

• Filament Material: Silicon carbide (SiC) abrasive filament – filament thickness, density and arrangement pattern can be customized according to customer requirements

• Handle/Core Material: Resin injection molded construction

Product Features:

• Stacked disc roller configuration – multiple abrasive discs stacked together to form a continuous roller brush with high filament density

• Higher filament density – significantly denser filament packing compared to standard roller brushes for more aggressive and consistent cutting action

• Silicon carbide abrasive performance – aggressive cutting action for deburring, descaling and surface finishing on ferrous metals and hard materials

• Resin injection molded construction – secure filament anchoring with high-strength resin bonding for reliable operation under demanding conditions

• Fully customizable specifications – filament thickness, density and arrangement pattern tailored to specific application requirements

• Wide working width – stacked disc design allows custom working widths for efficient large surface coverage

• Continuous roller action – rotating design provides consistent abrasive contact across the entire workpiece surface

• Heavy-duty performance – higher filament density delivers more material removal power for demanding applications

Applicable Scenarios:

• Large flat workpiece aggressive deburring – heavy burr removal from steel plates, sheets and large fabricated components

• Steel plate descaling – stripping thick mill scale and heavy oxidation from hot-rolled steel plates

• Heavy rust removal – aggressive rust stripping from carbon steel and alloy steel surfaces

• Surface preparation before coating – creating uniform surface profile for paint, powder coating or adhesive bonding

• Weld seam cleaning – removing slag, spatter and oxidation from weld seams on large fabrications

• Heavy material removal applications – where standard density brushes lack sufficient cutting power

• Steel mill processing lines – continuous surface treatment in demanding steel production environments

• Heavy equipment restoration – surface conditioning on large industrial equipment and machinery

What Makes Silicon Carbide Stacked Disc Roller Brush Different?

Our Silicon Carbide Abrasive Filament Stacked Disc Roller Brush features a unique stacked disc configuration that provides significantly higher filament density than standard roller brushes. Multiple abrasive discs are stacked together to form a continuous roller brush, creating a densely packed abrasive surface for aggressive and consistent cutting action.

Higher Filament Density Advantage:

The stacked disc design allows much higher filament packing density compared to traditional wound or molded roller brushes. This higher density delivers several performance benefits:

• More aggressive cutting action – more filaments contacting the workpiece per revolution

• Consistent material removal – uniform abrasive distribution across the entire working width

• Extended effective life – higher density compensates for filament wear over time

• Greater material removal power – ideal for heavy deburring and scale removal applications

Stacked Disc vs. Standard Roller Brush Construction

Silicon Carbide Abrasive Performance:

SiC abrasive provides high hardness and aggressive cutting action, making it effective for deburring ferrous metals, removing mill scale from hot-rolled steel and heavy surface conditioning. For aluminum and softer alloy applications, consider our aluminum oxide stacked disc roller brush options.

Resin Injection Molded Construction:

The resin injection molding process securely anchors each abrasive filament at the base, preventing filament loss or pull-out during high-speed operation. This construction is significantly more durable than stapled or mechanically fastened brushes. For custom industrial brush solutions, see our custom industrial brushes manufacturing capabilities.

Resin Injection vs. Other Construction Methods

Key Applications in Detail

Heavy Steel Plate Deburring
Large steel plates with significant burrs from plasma cutting, laser cutting or heavy machining require aggressive deburring. The higher filament density of the stacked disc roller brush provides the cutting power needed for efficient heavy burr removal. For heavy rust removal applications, consider our industrial wire brushes.

Thick Mill Scale Stripping
Hot-rolled steel plates often have thick, tenacious mill scale that standard brushes struggle to remove. The dense SiC abrasive filaments in this stacked disc brush deliver the aggressive cutting action required for efficient scale stripping. For pipe and tube internal cleaning, explore our industrial pipe cleaning brushes.

Surface Preparation for Coating
Proper surface preparation for heavy coatings requires a uniform surface profile. The consistent abrasive action of the stacked disc roller brush prepares large steel surfaces efficiently. For sealing applications on machinery, see our sealing industrial brushes.

Dual-Sided Processing Capability
Two brushes can be mounted opposite each other for simultaneous top and bottom surface treatment in a single pass, significantly improving line productivity for steel plate processing. For deburring applications on machined parts, see our deburring industrial brushes.

For Related Roller Brush Products

For general industrial roller brush applications, see our Roller Brush.

For silicon carbide abrasive roller brushes with standard density, explore our SiC roller brush options.

For aluminum oxide abrasive roller brushes for softer materials, see our AO roller brush series.

For strip brushes for sealing and conveying, check Strip Brush.

Frequently Asked Questions (FAQ)

Q1: How does stacked disc construction achieve higher filament density?

A1: Stacked disc construction uses multiple individual abrasive discs stacked together along the shaft. Each disc has its own dense filament packing, and when stacked, the combined filament density is significantly higher than wound or molded roller brushes where filaments have more spacing.

Q2: What is the advantage of higher filament density?

A2: Higher filament density provides more aggressive cutting action, greater material removal power, more consistent surface finish and longer effective working life. It is particularly advantageous for heavy deburring, thick scale removal and high-volume processing applications.

Q3: Is this brush suitable for wet processing environments?

A3: Yes, the resin injection molded construction provides good chemical resistance. However, for submerged or continuous wet operations, please consult our engineering team to ensure optimal material selection for your specific processing solution.

Q4: How do I determine the correct filament thickness and density for my application?

A4: Filament thickness and density depend on your material type, contaminant characteristics and desired surface finish. Coarse, high-density configurations provide maximum material removal for heavy scale and burrs. Fine, standard-density configurations deliver finer finishing results. Contact us with your application details for recommendations.

Q5: Can the working width be customized for my specific line requirements?

A5: Yes, the stacked disc design allows flexible working width customization. By adjusting the number of discs stacked, we can achieve any working width required for your specific processing line. Please provide your line specifications when ordering.
