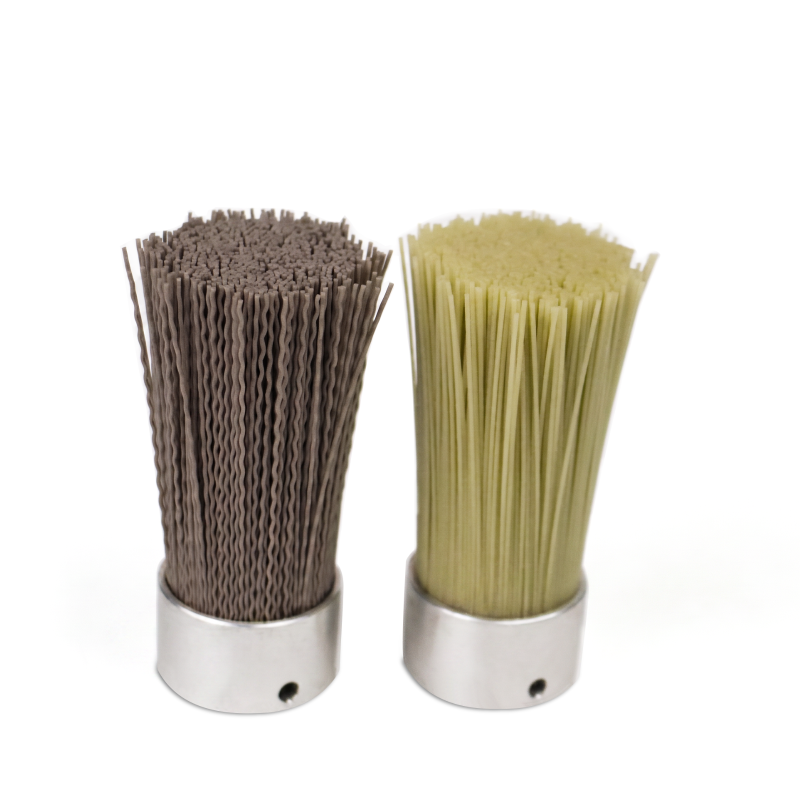

Extended-Length Unshanked Abrasive Nylon Filament End Brush:Deep Reach Deburring for Long Bores, Bent Tubes and Serpentine Channels

Product Name:

Extended-Length Unshanked Abrasive Nylon Filament End Brush – Deep Reach Deburring for Long Bores, Bent Tubes and Serpentine Channels

Product Size:

Customizable according to customer requirements – brush diameter, filament length, and base plate dimensions fully tailored to match specific deep hole, long tube, and complex channel geometries.

Product Material Composition:

• Filament Material: Extended-length aluminum oxide (AO) abrasive nylon filament or diamond abrasive nylon filament – Nylon 6.12 base with embedded abrasive; flexible, chemical-resistant, and non-contaminating

• Mounting Base: Steel plate with resin injection molded base – designed for user attachment to extension rods, flexible shafts, wire ropes, and custom fixtures

Product Features and Applications:

Our Extended-Length Unshanked Abrasive Nylon Filament End Brush features extra-long abrasive nylon filaments with no integrated steel shank – only a steel plate resin-injection molded base. This design allows users to attach their own extension rods, flexible shafts, wire ropes, or custom fixtures, providing unmatched reach for deep holes, long tubes, bent pipes, serpentine flow channels, and blind bores with high depth-to-diameter ratios.

Abrasive Options:

• Aluminum Oxide (AO) Abrasive – gentle cutting action for aluminum, copper, zinc, and other soft non-ferrous metals; micro-deburring, edge radiusing, and high-gloss finishing without damaging anodized layers

• Diamond Abrasive – ultra-high hardness with extended self-sharpening life; suitable for hardened steel, stainless steel, titanium alloys, tungsten carbide, ceramics, 3D-printed metal parts, and high-hardness mold mirror-finish polishing; excellent high-temperature resistance and production-wear performance

Key Features:

• Extended-Length Filament Design – extra-long filaments provide unmatched reach for deep holes, long pipes, bent tubes, and serpentine flow channels

• Unshanked Base Configuration – steel plate resin-injection base allows attachment to extension rods, flexible shafts, wire ropes, or custom fixtures

• Dual Abrasive Options – AO for soft non-ferrous metals; diamond for hardened steels, superalloys, and high-hardness materials

• Flexible Conformability – Nylon 6.12 filaments conform to irregular internal cavities, complex geometries, and curved passages

• Zero Metallic Contamination – no iron particle generation; safe for precision assemblies and contamination-sensitive applications

• Chemical Resistance – Nylon 6.12 base resists cutting fluids, emulsions, and mild acid/alkali solutions

• CNC Automation Ready – compatible with fully automated CNC machining centers when mounted on appropriate holders

Application Fields:

• New Energy Vehicle Industry – cleaning and deburring long cooling channels, battery housing passages, and motor component bores

• Automotive Engine and Fuel System Components – deburring long oil galleries, fuel passages, and exhaust system tubes

• Hydraulic and Pneumatic Precision Components – internal finishing of valve bodies, manifold blocks, and long fluid passages

• 3C Electronics Precision Hardware – deburring and finishing of precision electronic device components

• Aerospace High-Precision Manufacturing – finishing of aluminum, titanium, and composite structural components

• Injection Molding, Die Casting, and Stamping Molds – cleaning long water lines, hot runner channels, and complex mold cavities

• General Machinery and Hardware Processing – deburring and cleaning of long tubes, fittings, and mechanical components

• Medical Device Manufacturing – finishing of extended catheter bores and stainless steel valve body flow channels

• 3D-Printed Metal Parts – post-processing of complex internal geometries in additively manufactured components

• Woodworking and CNC Carving – cleaning and finishing of deep slots, extended hollow carvings, and complex wood cavities

Frequently Asked Questions (FAQ)

Q1: What is the difference between AO and diamond abrasive options for this brush?
AO (aluminum oxide) abrasive provides gentle, controlled cutting action for soft non-ferrous metals – aluminum, copper, zinc – without damaging anodized or coated surfaces. Diamond abrasive delivers ultra-high hardness and extended self-sharpening life for hardened steels, titanium alloys, tungsten carbide, ceramics, and 3D-printed metal parts requiring maximum wear resistance and premium finish quality.

Q2: How do I mount this brush onto my equipment?
The brush features a steel plate resin-injection base designed for user attachment. You can mount it to your own extension rods, flexible shafts, wire ropes, or custom fixtures using standard mounting methods. This unshanked design provides maximum flexibility for deep hole, long tube, and complex channel applications.

Q3: What is the advantage of the extended-length filament design?
Extended-length filaments provide significantly greater reach than standard brushes, enabling access to deep holes, long tubes, bent pipes, serpentine channels, and blind bores with high depth-to-diameter ratios. The long filaments also conform to irregular internal cavities and complex geometries that rigid tools cannot reach.

Q4: Can this brush be used in automated CNC applications?
Yes, when properly mounted on compatible extension rods or tool holders, this brush is fully compatible with automated CNC machining centers. The consistent abrasive performance and chemical resistance make it suitable for high-volume automated production with minimal tool change downtime.

Q5: What is the recommended operating speed and technique for this brush?
For optimal performance, operate at speeds based on brush diameter and abrasive type. Generally, use lower speeds (500-1500 RPM) for larger diameters and higher speeds for smaller diameters. Always start at lower speeds and increase gradually. The brush should be inserted into the bore before rotation begins, and only the filament tips should contact the workpiece – excessive pressure reduces brush life and may damage the workpiece surface. Contact our engineering team for specific recommendations based on your application.

Ready to Improve Your Deep Hole and Long Channel Deburring Operations?

Our extended-length unshanked abrasive nylon filament end brushes are available with AO or diamond abrasive options, customizable diameters, filament lengths, and base plate configurations to match your specific deep hole, long tube, and complex channel deburring requirements.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, bore dimensions, and equipment specifications for a prompt engineering review.
