Ultra-fine Diamond Wheel Brush

Product Overview

Our ultra-fine diamond wheel brush is manufactured from ultra-fine diamond abrasive nylon (cream) and engineered for high-efficiency fine finishing, with key advantages including ultra-fine diamond abrasive construction, superior efficiency on hard materials and extended service life.

Also known as custom ultra-fine diamond wheel brush, machine-mounted diamond disc polishing brush, industrial wheel brush or wheel brush for high-efficiency fine finishing.

Specifications and Custom Sizes

Ultra-fine Diamond Wheel Brush Specifications

Customizable according to customer requirements – wheel diameter, trim length and mounting specifications fully tailored

Material Composition

This brush is built from 2 material groups – the ultra-fine diamond abrasive filament and steel:

• Filament Material:   Ultra-fine diamond abrasive filament – premium abrasive for superior cutting performance on the hardest materials

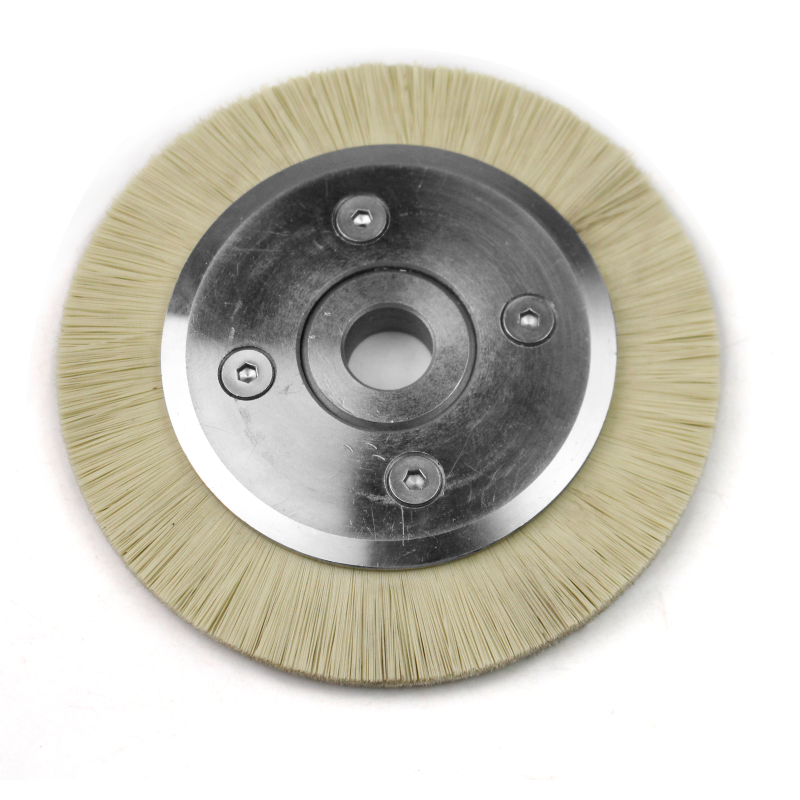

• Handle/Core Material:   Steel with center hole – designed for robotic arm mounting and equipment integration. The flange is bolt-locked: socket-head screws clamp the hub firmly so filaments stay fixed at high speed, and the brush can be swapped quickly when needed

Features and Applications

Abrasive Nylon Brush Wheel

• Ultra-fine diamond abrasive construction   – premium diamond filaments provide exceptional cutting power for hard alloys and demanding finishing applications
• Superior efficiency on hard materials   – significantly higher material removal rates than silicon carbide or aluminum oxide on hardened steels, ceramics and composites
• Extended service life   – diamond abrasive maintains cutting effectiveness considerably longer than conventional abrasives, reducing tool change frequency
• Center hole mounting   – steel core with center hole allows secure mounting on robotic arms and automated equipment
• Ultra-fine filament design   – fine diamond grit provides precision finishing capability while maintaining aggressive cutting action on hard materials
• Wheel brush configuration   – wide working face for efficient surface coverage and processing
• Heavy contaminant removal   – effectively removes heavy oil deposits, grease and stubborn contaminants from metal surfaces
• Premium value proposition   – higher initial cost justified by superior efficiency, extended life and lower cost per part in demanding applications
• Bolt-locked flange structure   – convenient mounting and removal with firmly anchored filaments that resist shedding at high speed
• Heat and chemical resistance   – the abrasive nylon filament withstands elevated temperatures and acid/alkali exposure for stable precision machining

What Makes Ultra-Fine Diamond Abrasive Wheel Brush Different?

Our   Ultra-Fine Diamond Abrasive Filament Wheel Brush   features premium diamond abrasive filaments in an ultra-fine configuration, mounted on a steel core with center hole for robotic arm integration. While the initial cost is higher than silicon carbide brushes, diamond provides superior efficiency and significantly longer service life on hard materials and heavy contaminant removal applications.

Diamond Abrasive Performance – Premium Value:

Diamond is the hardest abrasive material available, providing exceptional cutting power on materials that quickly wear down conventional abrasives:

Ultra-Fine Diamond Grit for Precision Finishing:

The ultra-fine diamond grit provides:

• Precision finishing capability on hard materials
• Superior surface quality with minimal scratching
• Consistent material removal for predictable results
• Ideal for applications requiring tight tolerances

Center Hole for Robotic Arm Mounting:

The steel core with center hole allows:

• Secure mounting on robotic arms and automated equipment
• Quick installation and removal
• Reliable operation in automated finishing cells
• Consistent positioning for repeatable results

Wheel Brush Configuration for Efficient Coverage:

The wheel brush shape provides:

• Wide working face for efficient surface coverage
• Effective processing of flat and contoured surfaces
• Suitable for large workpiece areas

Diamond vs. Conventional Abrasives – Application Comparison

Wheel Brush for High-efficiency Fine Finishing

• Hard alloy deburring   – removing burrs from tungsten carbide, cemented carbide and hardened tool steels
• Heavy oil and grease removal   – cleaning stubborn oil deposits, grease and industrial contaminants from metal surfaces
• Hardened steel finishing   – surface conditioning on heat-treated steels and wear-resistant alloys
• Ceramic and composite finishing   – deburring and surface refinement on advanced ceramics and composites
• CNC automated finishing   – robotic arm mounting for automated deburring operations
• Precision surface conditioning   – achieving superior surface finish on demanding materials
• Mold and die finishing   – deburring and surface preparation on hardened mold components
• Heavy-duty industrial cleaning   – aggressive contaminant removal in challenging environments
• Sapphire, glass and stone polishing   – fine grinding and polishing on sapphire, glass, natural stone and acrylic surfaces
• Semiconductor and precision edge work   – micro-burr removal and edge rounding on semiconductor components and precision hardware parts

Key Applications in Detail

Hard Alloy Deburring
Tungsten carbide, cemented carbide and hardened tool steels require diamond abrasives for effective deburring. Conventional abrasives dull quickly on these materials, while diamond maintains cutting effectiveness for extended periods. For deburring applications on machined parts, see our   deburring industrial brushes .

Heavy Oil and Grease Removal
Stubborn oil deposits, grease and industrial contaminants require aggressive cleaning action. Diamond abrasive filaments provide effective contaminant removal while maintaining cutting performance. For sealing applications on machinery, see our   sealing industrial brushes .

Automated Robotic Finishing Cells
The center hole mounting design allows integration with robotic arms and automated equipment. The consistent performance of diamond abrasive ensures predictable results in automated operations. For pipe and tube internal cleaning, explore our   industrial pipe cleaning brushes .

Premium Value for Demanding Applications
While the initial cost is higher than silicon carbide brushes, diamond abrasive delivers superior efficiency and extended service life. In high-volume production on hard materials, diamond brushes provide lower cost per part and reduced downtime for tool changes. For roller brush applications, see our   industrial roller brushes .

Mirror Finishing on Hard Brittle Materials
On sapphire, glass, advanced ceramics and cemented carbide, the ultra-fine diamond grit removes micro-burrs and rounds edges with minimal stock removal, refining mold cavities, cutting tools and bearing parts toward a mirror finish without scratching the substrate. The wide disc face keeps contact uniform for consistent batch polishing on automated and bench-top machines.

Customization Options for Your Specific Application:

In practice the same brush is specified as alloy diamond abrasive wheel or diamond abrasive grinding wheel depending on the application.

Frequently Asked Questions (FAQ)

Ready to Improve Your Hard Alloy Finishing Operations?

Contact our engineering team today to discuss your specific hard alloy deburring or heavy contaminant removal requirements. We can design and manufacture custom ultra-fine diamond abrasive filament wheel brushes with center hole mounting to fit your robotic equipment and application specifications.

Contact us   for technical recommendations and custom manufacturing quotes. Provide your application details, workpiece material and equipment specifications for a prompt engineering review.

Browse our full   industrial brush solutions   for additional deburring and finishing applications, or explore our   custom industrial brushes   manufacturing capabilities for other specialized requirements.
