4-Segment Tufted Shank-Mounted Aluminum Oxide Abrasive Disc Brush:High-Volume Automated Deburring and Surface Finishing

Product Name:

4-Segment Tufted Shank-Mounted Aluminum Oxide Abrasive Disc Brush – High-Volume Automated Deburring and Surface Finishing

Product Size:

Customizable according to customer requirements – disc diameter, trim length, cluster configuration, and shank size fully tailored to match specific workpiece geometries and equipment specifications. Standard shank diameters available for direct mounting in CNC machining centers, robotic spindles, and power tools.

Product Material Composition:

• Filament Material: Aluminum oxide (Al₂O₃) abrasive nylon filament – moderate hardness with balanced, uniform cutting action. Ideal for deburring and finishing without scratching precision surfaces. Available in various grit sizes to match specific material and finish requirements.

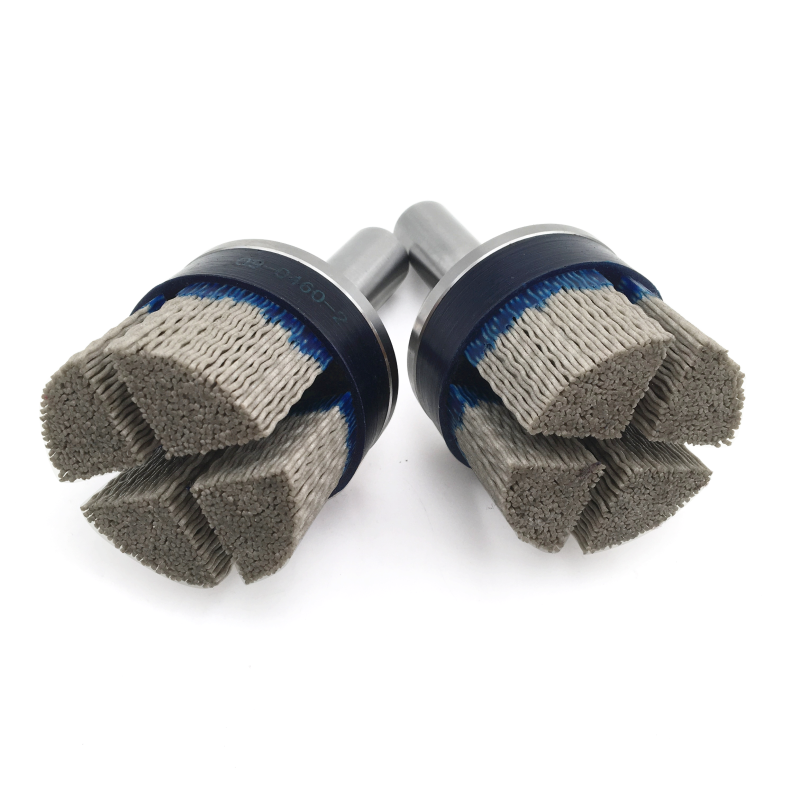

• Shank / Base Material: Steel shank with 4-segment tufted cluster construction – four independent fan-shaped filament tufts are point-anchored to the disc base in a quad-section arrangement. Standard cylindrical shank for direct collet mounting in CNC spindles, with no additional fixtures required.

Product Features and Applications:

Our 4-Segment Tufted Shank-Mounted Aluminum Oxide Abrasive Disc Brush features a quad-section tufted cluster construction where four independent fan-shaped filament blocks are arranged in a 4-segment pattern. This design – also known as a 4-section tufted disc brush, quad-segment shank-mounted abrasive brush, or CNC cluster deburring brush – provides superior chip evacuation, enhanced heat dissipation, and extended service life compared to full-face cast designs.

Core Advantages:

• Superior Chip Evacuation and Heat Dissipation – gaps between the four filament segments allow machining chips and heat to escape rapidly, preventing workpiece burning and enabling continuous high-speed machining. The 4-segment design provides better cooling than solid cast disc brushes, reducing the risk of filament damage at elevated temperatures.

• Flexible Buffering with Low Over-Cutting Risk – independent cluster blocks provide elastic compliance, adapting to workpiece dimensional variations and preventing gouging on edges, corners, and cross-hole intersections. Excellent tolerance for slight contour irregularities and stepped surfaces.

• Extended Service Life – Localized Wear Without Total Failure – individual cluster wear does not render the entire brush unusable; remaining clusters continue to function effectively, ensuring consistent service life and predictable replacement cycles.

• Balanced, Gentle Cutting Action – aluminum oxide abrasive provides moderate hardness with uniform cutting force, effectively deburring while minimizing the risk of scratching precision workpiece surfaces. Suitable for stainless steel, alloy steel, and carbon steel without causing overheating or burning.

• Ready-to-Mount Design – standard cylindrical shank allows direct collet mounting in CNC machining centers, milling machines, and robotic spindles without additional fixtures, suitable for automated batch production.

• Secure Filament Retention – each filament tuft is securely anchored, preventing filament loss even during high-speed rotation.

• Uniform Wear Pattern – balanced 4-segment load distribution ensures consistent filament wear, simplifying replacement scheduling and reducing maintenance costs.

Application Fields:

Automotive Parts Manufacturing:

• Transmission housings, steering components, crankshafts, and aluminum die-castings – end face deburring and cross-hole outlet edge finishing

• Aluminum cylinder heads and compressor housings – stepped surface deburring and milling mark removal

• Automotive gear and engine component surface preparation for plating and coating

Hydraulic and Pneumatic Components:

• Valve blocks, cylinder bodies, and oil port edges – sharp edge radiusing and machining flash removal

• Hydraulic component surface finishing and edge blending

Precision Hardware and Mold Industry:

• Stainless steel and alloy steel machined parts – edge burr cleaning and light chamfering after milling

• Surface conditioning of precision components

Aerospace Components:

• Titanium and aluminum alloy structural parts – machining burr removal with low burning risk requirements

Automated Robotic Finishing:

• Robotic spindle deburring – ideal for high-volume, flexible deburring operations in automated cells

• End face, flange surface, and parting line burr processing in batch production

General CNC Machining:

• Cast iron and carbon steel workpieces – flash removal after stamping and milling, oxide layer cleaning

• Casting and forging deburring and flash removal

• Surface conditioning of machined metal parts, castings, forgings, and automotive components

Frequently Asked Questions (FAQ)

Q1: What is the advantage of the 4-segment tufted cluster design over full-face cast disc brushes?
The 4-segment tufted cluster design provides gaps between the four filament blocks for superior chip evacuation and heat dissipation, preventing workpiece burning during continuous high-speed operation. The independent segment blocks offer flexible buffering that adapts to workpiece variations, reducing over-cutting risk. Additionally, localized cluster wear does not render the entire brush unusable – remaining segments continue to function effectively, extending overall service life and simplifying replacement scheduling. The 4-segment design is specifically engineered for high-volume automated production, while full-face cast brushes are better suited for light intermittent processing.

Q2: Why choose aluminum oxide (AO) abrasive over silicon carbide (SiC)?
Aluminum oxide provides moderate hardness with balanced, uniform cutting force. It is ideal for deburring and finishing stainless steel, alloy steel, and carbon steel without causing overheating or burning. While silicon carbide offers more aggressive cutting, AO is the preferred choice for applications requiring gentle, controlled material removal and scratch-free surface treatment on precision workpieces.

Q3: Is this brush suitable for automated CNC and robotic applications?
Yes. The standard cylindrical shank allows direct collet mounting in CNC machining centers, milling machines, and robotic spindles without additional fixtures. The brush can be used in the same tool changer as cutting tools, enabling deburring and finishing operations immediately after machining in the same setup. This eliminates secondary operations and reduces manual labor, making it ideal for high-volume automated production.

Q4: What is the recommended operating speed for this brush?
Recommended speed is typically 1,500–2,800 min⁻¹, with maximum speed up to 4,500 min⁻¹ depending on brush diameter. Feed rate should be 800–3,000 mm/min with infeed of 0.3mm (fine) to 2.0mm (coarse). Always start at lower speeds and increase gradually. Coolants and lubricants are recommended for higher speeds or very thin workpieces.

Q5: How do I select the correct grit size for my application?
Grit selection depends on your material and desired finish. Coarse grit provides aggressive material removal for heavy burrs. Medium grit is suitable for general deburring and edge blending. Fine grit delivers precision finishing and surface refinement. Abrasive grit is impregnated throughout each nylon filament, delivering consistent cutting action throughout the full service life of the brush. Contact our engineering team with your specific material and application requirements for optimal grit recommendations.

Ready to Automate Your High-Volume Deburring and Finishing Operations?

Our 4-segment tufted shank-mounted aluminum oxide abrasive disc brushes combine the balanced cutting power of AO abrasive with the chip-evacuation benefits of quad-segment cluster design and the convenience of direct shank mounting. Available with customizable disc diameters, trim lengths, cluster configurations, and shank sizes to match your specific CNC deburring, edge finishing, and surface conditioning requirements.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications for a prompt engineering review.
