Extra-Long Crimped Wire End Brush:Deep Reach Cleaning for Pipes, Tubes and Confined Cavities

Product Name:

Extra-Long Crimped Wire End Brush – Deep Reach Cleaning for Pipes, Tubes and Confined Cavities

Product Size:

Customizable according to customer requirements – brush diameter, filament length, and overall length fully tailored. Standard and custom dimensions available for deep hole and long pipe applications.

Product Material Composition:

• Filament Material: Crimped copper plated carbon steel wire – wave-shaped structure provides excellent toughness, flexibility, low sparking, and non-marring action on aluminum, brass, and copper

• Mounting Base: Steel plate encapsulated resin injection molded base – designed for user attachment to extension rods, wire brush shanks, flexible shafts, wire ropes, and fixtures

Product Features and Applications:

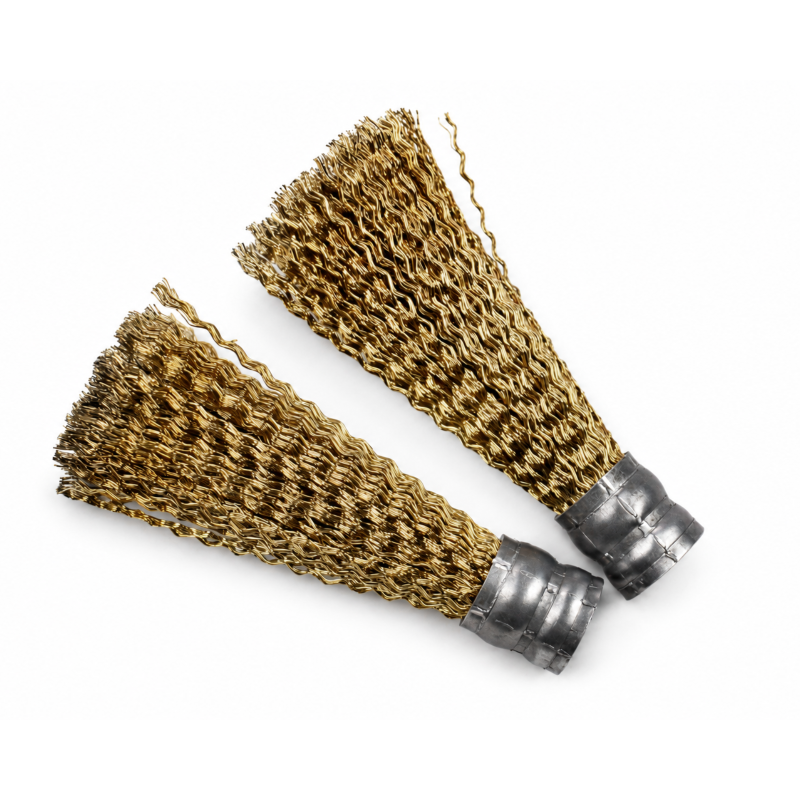

Our Extra-Long Crimped Copper Plated Wire End Brush features a unique long-filament design with a resin-injected steel plate base, specifically engineered for deep hole, long pipe, bent tube, and confined cavity internal cleaning. Unlike standard end brushes with fixed shanks, this brush is designed for users to attach their own extension rods, flexible shafts, wire ropes, or fixtures, providing unmatched versatility for accessing difficult-to-reach internal surfaces.

Key Features:

• Extra-Long Filament Design – significantly longer bristles provide extended reach for deep holes, long pipelines, and bent tubes; the flexible filaments are suitable for internal deburring, cleaning, and derusting applications

• Crimped Copper Plated Steel Wire – wave-shaped filaments offer excellent toughness and flexibility; low sparking operation with gentle action on aluminum, brass, and copper without surface damage

• User-Attachable Base – resin-injected steel plate mounting base allows easy attachment to custom extension rods, wire brush shanks, flexible shafts, wire ropes, or fixtures

• Low Spark Operation – copper plated steel filaments minimize sparking, making this brush suitable for use in potentially flammable environments such as oil and gas pipeline maintenance

• Deep Hole and Bent Tube Access – the long, flexible design enables cleaning of long-radius bends, U-tubes, and serpentine pipelines that rigid brushes cannot navigate

• Corrosion Resistance – copper plating provides mild corrosion protection, extending service life in demanding cleaning applications

• Customizable Dimensions – brush diameter, filament length, and overall length tailored to specific pipe or bore dimensions

Application Fields:

• Long Pipeline Internal Cleaning – derusting, descaling, and degreasing of long metal pipes, tubes, and conduits

• Pressure Vessel and Manifold Deep Hole Cleaning – cleaning extended nozzles, flange deep holes, and threaded deep holes in pressure vessels and manifolds

• Pre-Pipeline Commissioning Preparation – internal surface pretreatment before pressure testing and acid pickling/passivation

• Automotive Maintenance – decarbonizing and cleaning extended engine intake/exhaust manifolds, cooling system lines, and EGR pipes

• Oil and Gas Pipeline Maintenance – routine cleaning of low-pressure fuel and oil transmission lines with low spark safety benefits

• Die Casting and Injection Molding Equipment – cleaning extended water lines, cooling channels, and hot runner systems

• Pipe Refurbishment – removing old rust and coating residues from galvanized steel pipes and reclaimed pipe interiors

• Metallurgical and Wire Production Lines – cleaning extended guide holes and long guide sleeves in wire and bar production equipment

Frequently Asked Questions (FAQ)

Q1: What is the advantage of the user-attachable base design?
The resin-injected steel plate base allows users to attach their own extension rods, flexible shafts, wire brushes, or wire ropes, providing maximum flexibility for accessing deep holes, long pipes, bent tubes, and confined cavities. This design enables custom reach configurations that standard fixed-shank brushes cannot accommodate.

Q2: What is the difference between crimped and twisted wire construction?
Crimped wire features wave-shaped filaments that provide flexible, buffered cleaning action ideal for light-to-moderate cleaning, surface preparation, and finishing on irregular surfaces . Twisted wire construction (knot wire) provides rigid, aggressive "hammering" action for heavy rust removal, weld spatter cleaning, and thick scale stripping. For this deep-reach application, crimped wire offers the flexibility needed to navigate bends and extended lengths.

Q3: What operating speed should I use for this extra-long brush?
For optimal performance and safety, operate this brush within the recommended speed range. Based on industry standards for similar long-shank end brushes, maximum recommended RPM is typically 15,000-20,000 RPM, with optimum performance at 4,000-9,500 RPM depending on brush diameter and material . Always start at lower speeds and increase gradually. For the best results, use a tool drive with a minimum output of 300 watts .

Q4: Can this brush be used on aluminum, brass, or copper surfaces?
Yes. The copper plated steel filaments provide gentle, non-marring action that will not damage soft metals. The copper coating isolates iron ions, preventing contamination that can cause galvanic corrosion on aluminum and other non-ferrous workpieces.

Q5: How do I select the correct brush diameter for my pipe or bore?
For effective internal cleaning, select a brush diameter that provides adequate filament contact with the bore wall – typically approximately 10-20% larger than the nominal bore diameter. The crimped wire filaments will compress to conform to the bore surface during rotation . For long-radius bends, a slightly smaller diameter may be required to navigate the curve. Contact our engineering team with your pipe specifications for precise sizing recommendations.

Ready to Improve Your Deep Hole and Long Pipeline Cleaning Operations?

Our extra-long crimped copper plated wire end brushes are available with customizable diameters, filament lengths, and mounting base configurations to match your specific deep hole, long pipe, and bent tube cleaning requirements.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your pipe dimensions, bend radius, and application details for a prompt engineering review.
