Fan-Shaped Mounted End Brush:Flexible Deburring and Surface Conditioning for Complex Contours

Product Name:

Fan-Shaped Mounted End Brush – Flexible Deburring and Surface Conditioning for Complex Contours

Product Size:

Customizable according to customer requirements – brush diameter, filament trim length, shank diameter, and overall length fully tailored to match specific workpiece geometries and equipment specifications. Standard shank diameters available for direct mounting in CNC machining centers, die grinders, and power tools.

Product Material Composition:

• Filament Material: Multiple options available – stainless steel wire for corrosion resistance and contamination-free processing; copper-plated steel wire for balanced toughness and moderate cutting; pure copper wire for non-marring action on soft workpieces. Custom filament materials available upon request.

• Shank / Base Material: Steel shank with integrally pressed filament clusters – filaments arranged in a fan-shaped outward-spreading configuration. Standard cylindrical shank for direct collet mounting in CNC spindles, robotic arms, and handheld tools.

Product Features and Applications:

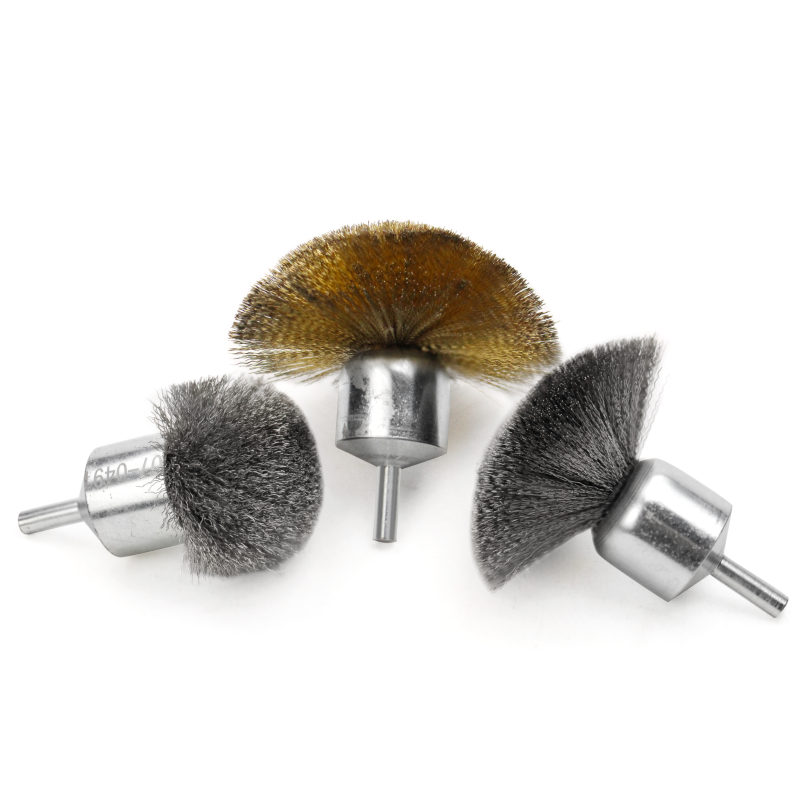

Our Fan-Shaped Mounted End Brush features a unique fan-shaped filament arrangement where wire clusters spread outward from the steel shank base in a radial configuration. This design – also known as a cup-type end brush or shank-mounted flared end brush – provides superior surface conformity, flexible buffering, and multi-directional deburring action that reaches edges, corners, hole entries, and chamfers that standard straight end brushes cannot access.

Core Advantages:

• Fan-Shaped Flared Structure – filaments spread outward, providing access to end faces, edges, hole entries, and chamfered surfaces. Flexible filaments conform to workpiece contours, adapting to irregular shapes and complex geometries.

• Multiple Filament Material Options – Stainless Steel Wire: high strength, rust-resistant, low iron contamination – ideal for stainless steel and carbon steel workpieces; Copper-Plated Steel Wire: excellent toughness, reduced wire breakage, moderate cutting action; Pure Copper Wire: softer texture, will not scratch soft workpieces, prevents surface marring on aluminum and copper alloys

• One-Piece Shank-Mounted Design – standard cylindrical shank allows direct collet mounting in CNC machining centers, die grinders, and power tools. Simple mounting with high concentricity, suitable for both automated equipment and handheld tools.

• Flexible Buffering Action – filaments provide elastic compliance, self-adapting to workpiece dimensional variations without gouging. Effectively balances deburring with light surface cleaning.

• High-Density Filament Packing – dense filament arrangement provides high working efficiency and extended service life. Secure anchoring prevents filament loss even at high rotational speeds.

Application Fields:

• Machined Part Edge Deburring – removing burrs from part edges, chamfers, hole entries, and machining flash on precision components

• Weld Seam Treatment – cleaning light oxidation, weld spatter, and weld discoloration on small weld seams

• Hardware and Die-Cast Parts – parting line flash removal and surface oxide layer cleaning on die-cast components

• Mold and Fastener Components – cleaning burrs from screws, small hardware parts, and narrow mold crevices

• Non-Ferrous Metal Workpieces – pure copper wire version recommended for aluminum and copper parts to prevent surface scratching

• CNC Automated Finishing – direct spindle mounting for high-volume post-machining deburring operations

• Rust and Paint Removal – localized rust stripping and old coating removal on small workpieces

Note: Wire-type filaments may produce fine metallic debris during operation. For soft workpieces, select the pure copper wire version to avoid surface scratching.

Frequently Asked Questions (FAQ)

Q1: What is the advantage of the fan-shaped filament arrangement?
The fan-shaped flared structure allows filaments to spread outward during rotation, providing access to end faces, edges, hole entries, and chamfered surfaces that standard straight end brushes cannot reach. The flexible filaments conform to workpiece contours, making them ideal for irregular shapes and complex geometries.

Q2: What filament materials are available and how do I choose?
We offer three primary options: Stainless Steel Wire – high strength, rust-resistant, low iron contamination – ideal for stainless steel and carbon steel workpieces; Copper-Plated Steel Wire – excellent toughness, reduced wire breakage, moderate cutting action; Pure Copper Wire – softer texture, will not scratch soft workpieces, prevents surface marring on aluminum and copper alloys.

Q3: Can this brush be used on aluminum or copper workpieces without causing damage?
Yes. For aluminum, copper, and other soft non-ferrous metals, we recommend selecting the pure copper wire version. Pure copper filaments are significantly softer than steel and will not scratch or mar soft workpiece surfaces, preventing cosmetic damage and surface contamination.

Q4: Is this brush suitable for automated CNC and robotic applications?
Yes. The standard cylindrical shank allows direct collet mounting in CNC machining centers, die grinders, and robotic spindles. The brush can be used in automated tool changers, enabling deburring and finishing operations immediately after machining in the same setup.

Q5: What is the recommended operating speed for this brush?
Recommended speed depends on brush diameter and filament material. Typical speeds range from 1,500–3,000 min⁻¹ for most applications, with maximum speeds up to 20,000 RPM for smaller diameters.Always start at lower speeds and increase gradually. Coolants and lubricants are recommended for extended service life and improved surface finish.

Ready to Improve Your Contoured Deburring and Surface Finishing Operations?

Our fan-shaped mounted end brushes combine flexible fan-shaped filament arrangement with multiple wire material options for versatile deburring, edge finishing, and surface conditioning. Available with customizable brush diameters, filament trim lengths, shank sizes, and filament materials to match your specific deburring and surface finishing requirements.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications for a prompt engineering review.

Browse our full End Brush Series for additional deburring and finishing solutions, or explore our custom industrial brushes for other specialized requirements.
