Product Name:

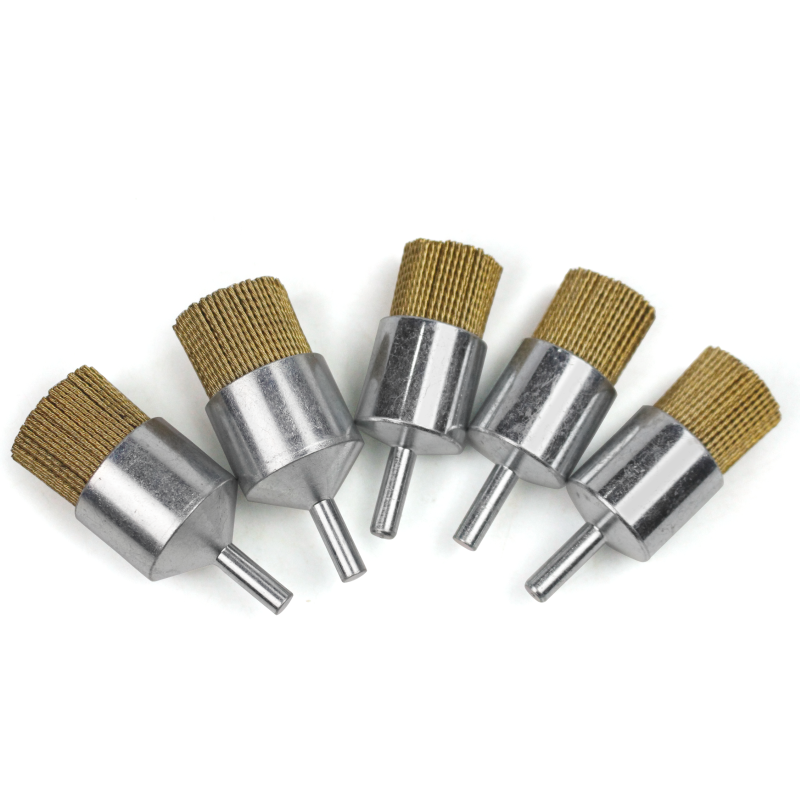

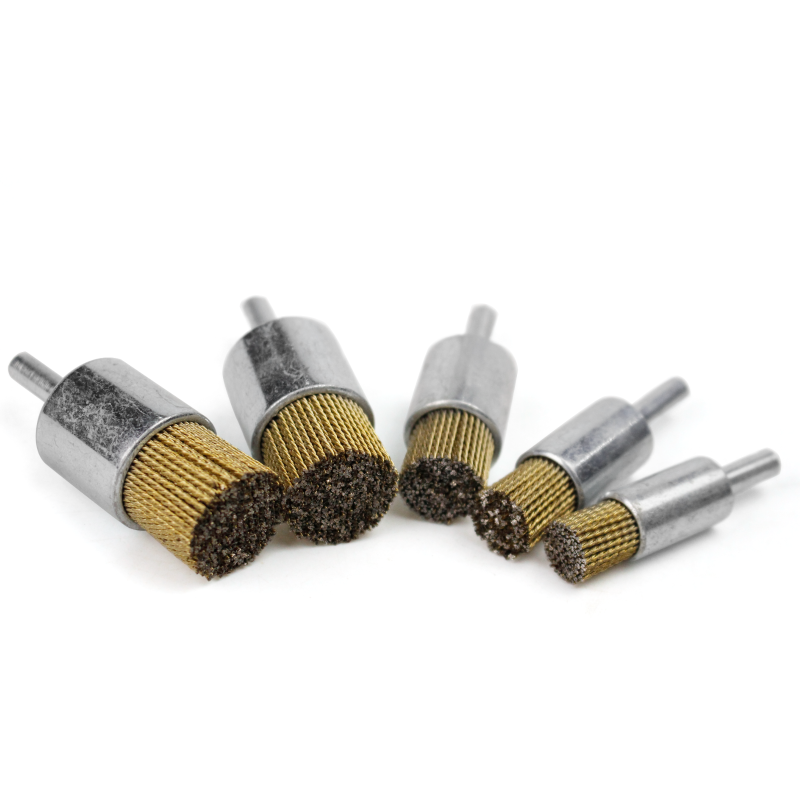

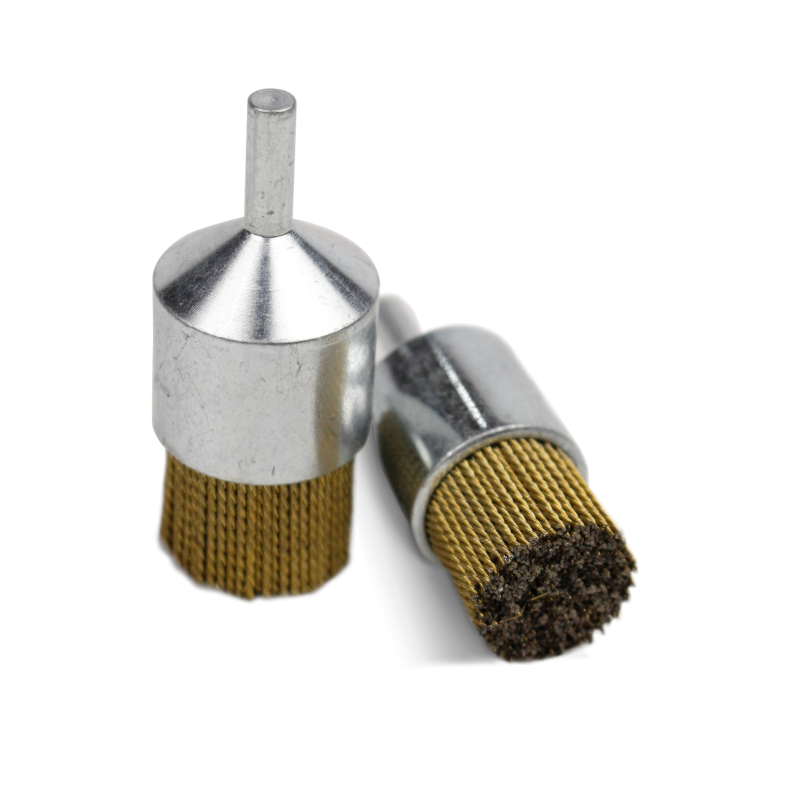

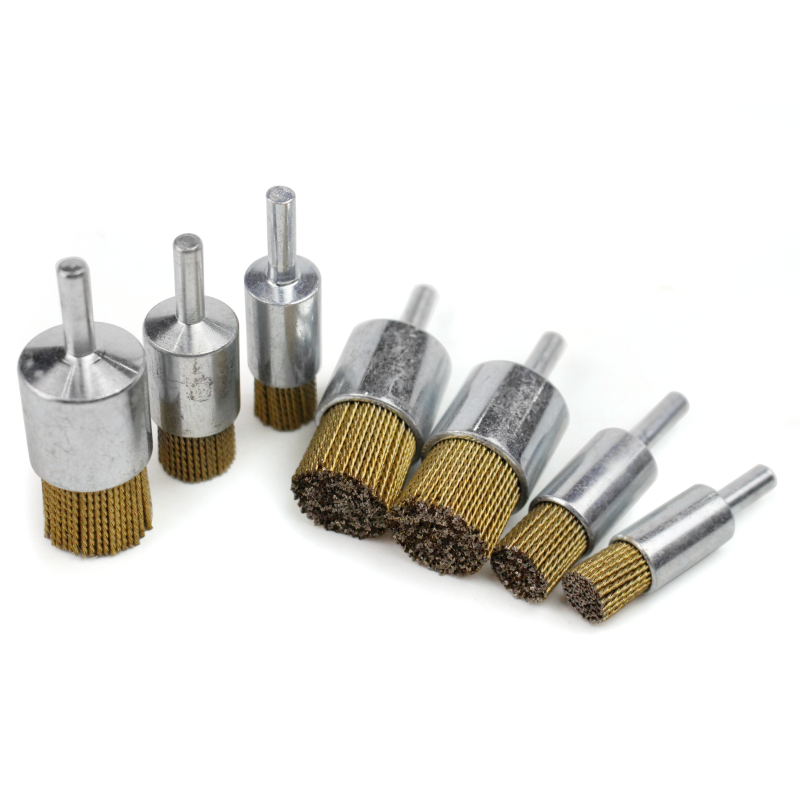

Twisted Copper Plated Steel Wire End Brush – Balanced Aggression for Non-Ferrous Metal Cleaning and Weld Preparation
Product Size:
Customizable according to customer requirements – brush diameter, trim length, and shank size fully tailored. Available in standard and custom dimensions to match your specific application requirements.
Product Material Composition:
-
Filament Material: Two straight copper plated steel wires twisted together into durable strands – twisted knot construction with copper plating for enhanced corrosion resistance
-
Shank Material: Steel shank for secure mounting in power tools, drill chucks, and CNC tool holders
Product Features and Applications:
Our Twisted Copper Plated Steel Wire End Brush features a unique construction where two straight copper plated steel wires are twisted together to form durable, rigid strands. This design provides higher structural strength, enhanced durability, and moderate aggression – delivering superior performance compared to standard twisted carbon steel brushes while offering better corrosion resistance than bare carbon steel.
Key Features:
-
Twisted Knot Construction – two wires twisted together create rigid, durable strands that resist breakage and fatigue for extended service life
-
Copper Plated Protection – copper coating provides enhanced corrosion resistance compared to bare carbon steel, with improved rust protection and reduced sparking during operation
-
Balanced Aggression – delivers moderate cutting power ideal for general surface preparation – more aggressive than crimped wire but with better flexibility than heavy-duty twisted carbon steel
-
Versatile Cleaning Action – effective for rust removal, oxide layer stripping, weld cleaning, paint stripping, and oil/grease removal
-
Low Sparking – copper plating helps reduce sparking during operation, improving safety in flammable environments
-
Customizable Dimensions – brush diameter, trim length, and shank specifications tailored to your equipment and workpiece requirements
Application Fields:
-
Non-Ferrous Metal Cleaning – removing rust, oxide layers, and surface contaminants from aluminum, brass, copper, and other non-ferrous alloys
-
Weld Preparation and Cleaning – cleaning weld seams, weld points, and removing weld discoloration
-
Paint and Coating Removal – stripping thin paint layers, adhesives, and coatings from metal surfaces
-
Industrial Equipment and Pipe Cleaning – removing oil sludge, rust, and deposits from equipment interiors, tubes, and pipes
-
Automotive Maintenance – cleaning automotive components, engine parts, and chassis components for repair and restoration
-
Surface Preparation for Coating – preparing surfaces for painting, powder coating, or electroplating
-
General Maintenance – cleaning and surface conditioning in fabrication shops, maintenance facilities, and machine shops
Industry Applications:
-
Automotive Manufacturing and Repair – body shop, engine rebuild, component cleaning
-
Non-Ferrous Metal Processing – aluminum and copper finishing, die-casting, hardware manufacturing
-
General Machinery and Equipment Maintenance – fabrication shops, assembly lines, repair facilities
-
Steel Structure and Decorative Metal – cleaning steel structures, ironwork, architectural metal finishes
-
Oil and Gas Pipeline Maintenance – cleaning pipe interiors, external pipeline surfaces, and valve components
-
Furniture and Hardware Manufacturing – surface preparation for wood, metal, and furniture hardware
Recommended Operating Speed:
For optimal performance and safety, operate this brush within the recommended speed range:
-
Brush diameter ≤ 25mm: 15,000 – 20,000 RPM
-
Brush diameter 25-50mm: 10,000 – 15,000 RPM
-
Always start at lower speeds and increase gradually
Frequently Asked Questions (FAQ)
Q1: What is the advantage of twisted copper plated wire over standard twisted carbon steel?
Copper plated twisted wire provides enhanced corrosion resistance, reduced sparking, and improved compatibility with non-ferrous metals. The copper coating acts as a protective barrier, reducing rust formation and preventing iron contamination on aluminum, brass, and copper workpieces . Compared to bare carbon steel, copper plated wire offers significantly better rust protection at a lower cost than stainless steel.
Q2: Can this brush be used on aluminum or other non-ferrous metals?
Yes, this brush is specifically designed for non-ferrous metal applications. The copper plating prevents iron contamination that can cause galvanic corrosion on aluminum and other soft metals . However, for strict iron-free requirements, we recommend our stainless steel twisted knot end brushes.
Q3: How does the performance compare to crimped wire brushes?
Twisted copper plated wire brushes provide more aggressive cutting action and higher material removal rates than crimped wire brushes. The twisted knot design delivers focused impact force for effective rust removal and weld cleaning, while crimped wire offers flexible, lighter cleaning action for finishing and texturing applications.
Q4: What is the recommended operating speed for this brush?
For optimum performance and safety, operate this brush within the recommended speed range – typically 15,000-20,000 RPM for smaller diameters (≤25mm) and 10,000-15,000 RPM for larger diameters . Always refer to the product specifications and start at lower speeds, increasing gradually to achieve the desired result.
Q5: When should I choose this brush vs. stainless steel or carbon steel twisted wire?
Choose this brush for non-ferrous metal applications requiring moderate aggression with corrosion protection – ideal for aluminum, brass, and copper cleaning and weld preparation. Choose carbon steel for maximum aggression on ferrous metals where corrosion is not a concern. Choose stainless steel for ferrous and non-ferrous workpieces requiring corrosion resistance and iron-free finishing .
Ready to Improve Your Non-Ferrous Metal Cleaning and Weld Preparation Operations?
Our twisted copper plated steel wire end brushes are available with customizable diameters, trim lengths, and shank configurations to match your equipment and application specifications.
Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications for a prompt engineering review.

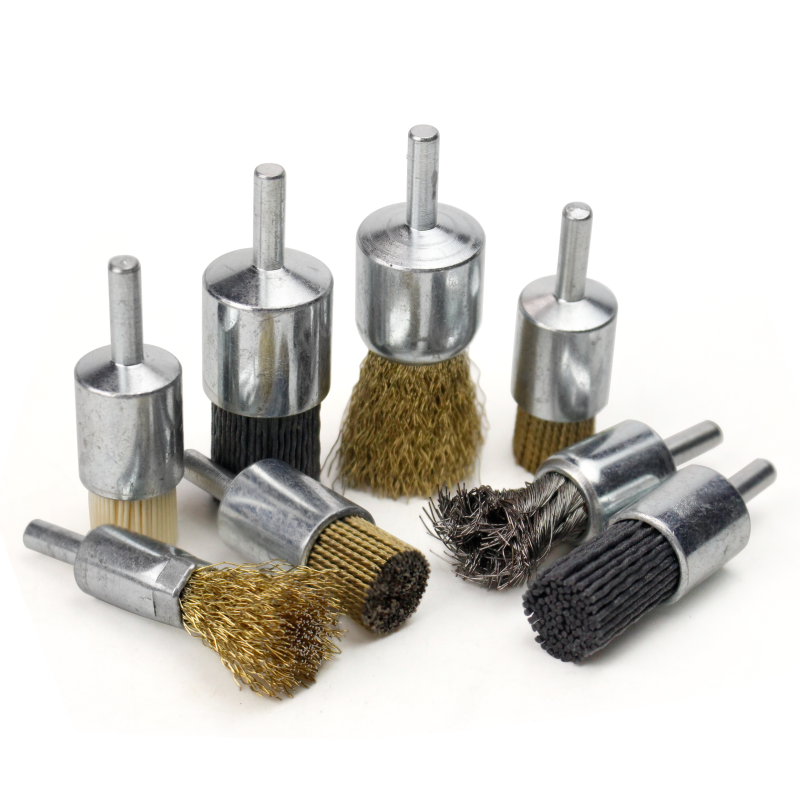

Browse our full End Brush Series for additional deburring and finishing solutions, or explore our custom industrial brushes for other specialized requirements.
