Turbine Slotted Segmented Ceramic Fiber Disc Brush:High-Efficiency Chip Evacuation for Complex Surface Finishing

Product Name:

Turbine Slotted Segmented Ceramic Fiber Disc Brush – High-Efficiency Chip Evacuation for Complex Surface Finishing

Product Size:

Customizable according to customer requirements – disc diameter, slot pattern, segment configuration, and shank mounting fully tailored to match specific workpiece geometries and CNC equipment specifications.

Product Material Composition:

• Filament Material: High-purity sintered ceramic micro-fibers – pure ceramic fiber integrated structure with no nylon base. Each bristle consists of 500–1,000 individual ceramic fibers that function as cutting edges. The ceramic fiber material contains over 80% ceramic content with self-sharpening cutting edges that continuously regenerate during operation.

• Shank / Base Material: Steel disc base with turbine-style radial segmented slots – the disc is divided into multiple independent fan-shaped grinding segments through turbine-pattern radial slotting (distinct from tufted cluster and full-face solid designs)

Product Features and Applications:

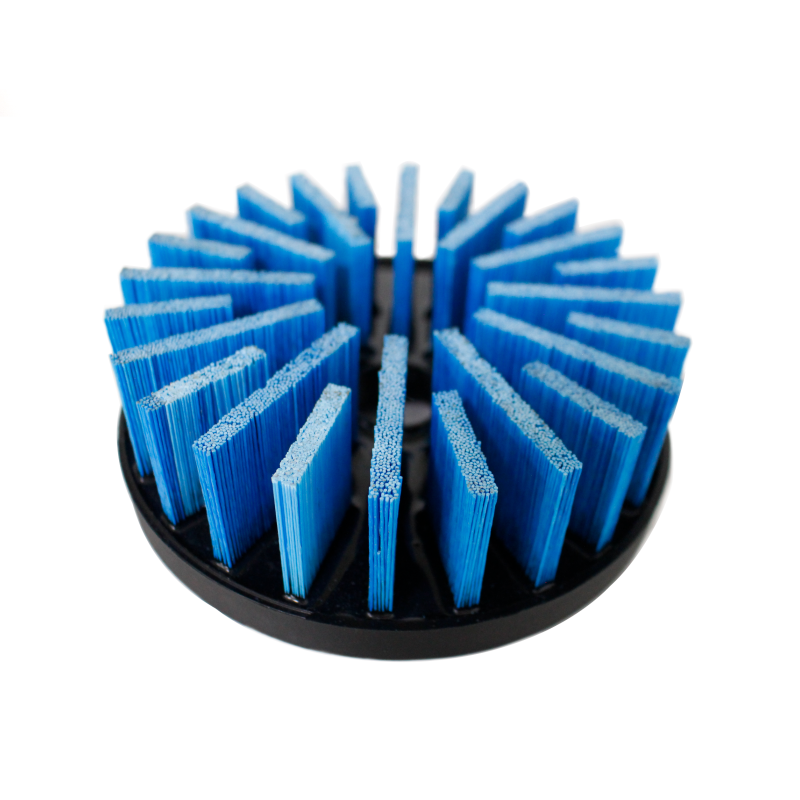

Our Turbine Slotted Segmented Ceramic Fiber Disc Brush features a turbine-style radial segmented slot design, where the disc is divided into multiple independent fan-shaped grinding blocks through precision-cut turbine-pattern slots. This design – also known as a turbine-slotted ceramic fiber disc brush or wave-segmented ceramic abrasive brush – is built on a pure sintered high-purity ceramic fiber integrated structure, distinguishing it from tufted cluster and full-face solid designs.

Core Advantages – Turbine Slotting + Segmented Blocks + Ceramic Fiber Synergy:

• Superior Chip Evacuation – turbine-pattern radial slots provide exceptional chip clearance, completely eliminating material clogging and "burning" during high-speed operation

• Flexible Segmented Compliance – individual segmented blocks offer elastic yielding, delivering maximum conformity to complex 3D surfaces, stepped features, and contoured geometries

• High-Speed Dynamic Balance – precision turbine slotting ensures superior dynamic balance, eliminating vibration even at high CNC spindle speeds for stable, predictable results

• Permanent Self-Sharpening – ceramic fibers continuously expose fresh cutting edges during operation, maintaining consistent grinding power throughout the brush's entire service life

• Zero Metallic Contamination – no metallic debris or Foreign Object Debris (FOD); fully compliant with aerospace FOD control requirements

• Multi-Surface Usability – both the disc face and side surfaces can be utilized for finishing operations, maximizing tool utility across multiple applications

Primary Applications:

• Aluminum Alloy Large Surface Finishing – continuous batch removal of CNC milling cutter marks from aluminum flat surfaces (most core flagship application)

• Complex Surface Finishing – precision processing of stepped surfaces,圆弧过渡面, and complex cavity geometries

• Aerospace High-Strength Alloy Finishing – precision finishing of difficult-to-machine aerospace components including aluminum, titanium, and superalloys

• Precision Mold and Die Maintenance – mold core refinement, parting line surface conditioning, and cavity finishing

• 3C Electronics High-End Metal Components – large-area automated polishing of premium electronic device housings and aesthetic metal parts

• Hardened Steel and Stainless Steel Finishing – precision finishing of hardened steels, stainless steel, and high-pressure valve body components

• CNC Machining Center / Robotic Automation – fully automated in-machine deburring and finishing for high-volume production

• Pre-Surface Treatment – surface preparation before painting, electrophoretic coating, and powder coating applications

Frequently Asked Questions (FAQ)

Q1: What is the advantage of turbine-style radial slotting compared to full-face solid disc brushes?
Turbine-style radial slotting provides superior chip evacuation, preventing material clogging and "burning" during high-speed operation. The slots also divide the disc into independent segmented blocks that offer elastic compliance, allowing the brush to conform to complex 3D surfaces, stepped features, and contoured geometries that full-face solid discs cannot effectively process.

Q2: How does the segmented block design improve surface finishing on complex geometries?
The individual segmented blocks act as independent grinding units that can flex and adapt to the workpiece surface. This elastic yielding provides maximum conformity to rounded transition surface, stepped surfaces, and cavity side walls, ensuring consistent contact pressure and uniform finishing results across complex 3D geometries.

Q3: What surface finish quality can this brush achieve on aluminum alloy surfaces?
Ceramic fiber brushes can achieve surface roughness as fine as Ra=0.1μm. The turbine slotted design is particularly effective for removing CNC milling cutter marks from aluminum large surfaces, making it the ideal solution for continuous batch processing of aluminum alloy components.

Q4: Can this brush be used in high-speed CNC applications without vibration?
Yes. The precision turbine slotting design ensures superior dynamic balance, eliminating vibration even at high CNC spindle speeds. This stability is critical for achieving consistent, repeatable results in automated production runs and extends both brush and spindle life.

Q5: What materials can this brush effectively process?
Ceramic fiber brushes are effective on materials up to 65 Rc, including aluminum alloys, hardened steels, stainless steel, titanium, Inconel, and other superalloys. The brush is ideal for aerospace, automotive, medical, and general precision machining applications. For soft materials such as pure copper and ultra-thin zinc alloys, use with caution as the cutting force may be excessive.

Ready to Automate Your Complex Surface Finishing Operations?

Our turbine slotted segmented ceramic fiber disc brushes combine the superior cutting power of ceramic fiber technology with the chip-evacuation benefits of turbine slotting and the conformity of segmented block design. Available with customizable disc diameters, slot patterns, segment configurations, and shank mounting options to match your specific CNC deburring, cutter mark removal, and complex surface finishing requirements.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications for a prompt engineering review.
