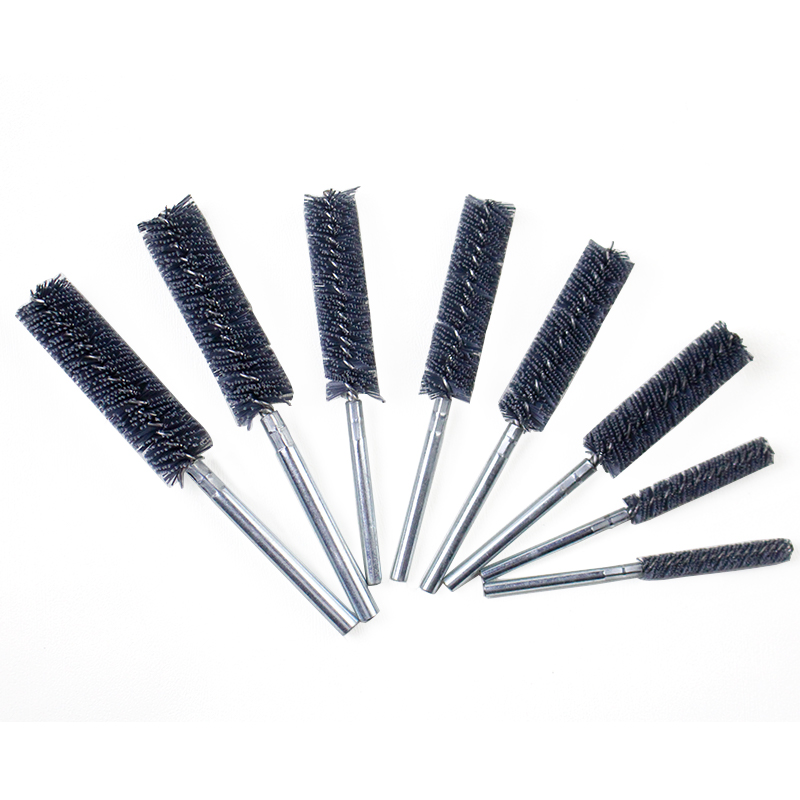

Silicon Carbide Double Spiral Tube Brush set in multiple diameters for twisted wire abrasive hole brushing
Two twisted wire Silicon Carbide Double Spiral Tube Brushes with plain steel shank

Silicon Carbide Double Spiral Tube Brush

LONGGUANG currently has more than 3,000 industrial brush products, covering all industries such as auto parts, mechanical parts, hydraulic parts, etc. Our products are widely used in the polishing, de-rusting, and deburring of metal parts processing; metal sheet, strip cleaning, grinding, descaling; finishing of textile, printing, and dyeing leather products, sanding; dust removal, grinding and coating of paper and artificial boards Glue; cleaning, polishing, deburring of circuit boards; cleaning of glass and LCD substrates; cleaning and descaling of pipes; sealing and dust proofing of furniture, storage, and machinery.

Model: Customized as your request

Product Origin: Shanghai, China

Shipping Port: Shanghai Port, China

Payment: TT

Lead Time: 15-30 days after receiving your deposit

Product Overview

Our silicon carbide double spiral tube brush is manufactured from silicon carbide abrasive nylon (black) and engineered for internal deburring, with key advantages including high rigidity and stability, high filament density and strong deburring performance.

Also known as SiC double spiral tube brush, twisted wire abrasive hole brush or abrasive nylon tube brush. The metal twisted-wire core is spirally wound to lock every silicon carbide abrasive nylon filament firmly in place, and the integral steel shank on one end chucks directly into hand drills, die grinders and CNC spindles for rotating and reciprocating bore work.

Specifications and Custom Sizes

Custom Silicon Carbide Tube Brush Sizes and Grits

Outer diameter, brush length, filament height, and core diameter can be tailored

Reference Drawing:

Brush design drawing

Standard series (non-custom sizes): the chart below lists our stock sizes produced to fixed dimensions. Where a standard size does not match your bore, the same double spiral build is available to order with customised brush diameter, working length, overall length, filament height, core diameter, shank diameter and grit – send us your drawing for a made-to-order quotation.

Full Series:

Dia A Working l. B Shaft D. C Total l. E Core D. E Part No.
SC 500# SC 320#
8 50 5 110 1.3 GS501408
10 50 5 110 1.3 GS501410
12 60 6 130 1.6 GS501412
14 60 6 130 1.6 GS501414
16 60 6 130 1.6 GS501416 GS321416
18 60 6 130 1.6 GS501418 GS321418
20 80 8 160 2 GS321420
22 80 8 160 2 GS321422
25 80 8 160 2 GS321425

Material Composition

This brush is built from 2 material groups – the silicon carbide (sic) abrasive filament and steel:

  • Filament Material:  Silicon carbide (SiC) abrasive filament – industrial grade, high hardness
  • Handle/Core Material:  Steel twisted-wire core – double spiral wound construction, with a plain steel shank on one end for direct chucking

Features and Applications

Silicon Carbide Tube Brush

  • High rigidity and stability  – double spiral steel core provides excellent torsional strength and prevents brush deformation under heavy load
  • High filament density  – more abrasive filaments per unit length for aggressive material removal
  • Strong deburring performance  – silicon carbide grit effectively removes burrs from cemented carbide, hardened steel, and other difficult-to-machine alloys
  • Consistent cutting action  – abrasive filaments wear evenly, maintaining performance throughout tool life
  • No bristle loss or falling off  – grit is securely bonded into the filament matrix
  • Cost-effective for medium-to-high volume production  – longer service life than non-abrasive tube brushes
  • Twisted-wire lock, no filament loss – the metal twisted wire clamps the abrasive filaments tightly, so filaments stay in place under high-speed rotation and repeated push-pull strokes inside the bore
  • Gentle on bore walls – abrasive nylon cuts without scratching the hole surface and leaves no metal debris contamination on the workpiece, unlike steel wire brushes
  • Coolant resistant – the abrasive nylon filaments withstand water, emulsion and cutting oil for stable wet machining

Note:  While silicon carbide is slightly softer than diamond, this brush offers  excellent value  for applications where diamond abrasives may be over-spec. For the most demanding cemented carbide applications requiring maximum life and efficiency, consider our diamond abrasive version. This is an internal cleaning and light-deburring tool: its cutting force is lower than that of ball-type honing brushes, and long deep bores should be processed with reciprocating feed.

Tube Brush for Internal Deburring

  • Deburring of through-holes and cross-holes in cemented carbide materials  – ideal for carbide cutting tools, molds, and wear parts
  • Heavy oil and grease removal from industrial pipes  – hydraulic systems, compressor galleries, and engine oil passages
  • Precision metal finishing  – surface smoothing and edge radiusing of precision-engineered components
  • Internal surface treatment of metal tubes  – removing oxide scale and machining marks
  • Automotive and aerospace parts cleaning  – gearbox housings, valve bodies, and hydraulic manifolds
  • Mold cooling channel cleaning – removing oil, rust and machining residue from small cooling channels inside molds

Related internal links :

Double spiral winding of the silicon carbide double spiral tube brush with steel shank

Frequently Asked Questions (FAQ)

Q1: What is the benefit of a Double Spiral over a Single Spiral tube brush?
A: A Double Spiral (4-wire) brush is much more durable and rigid. It holds more abrasive filaments, which means it cleans faster and lasts longer. It is the professional choice for power-driven applications, whereas single spiral brushes are often relegated to light manual cleaning.

Q2: Can I use these brushes with a power drill or CNC machine?
A: Absolutely. These brushes are designed for power-driven use. The double-stem construction provides the torque resistance necessary for use with electric drills, air tools, and automated CNC machining centers.

Q3: How do I choose the correct brush diameter for my hole?
A: For effective deburring, the brush diameter should be slightly larger (approx. 5% to 10%) than the hole's internal diameter. This "interference fit" ensures the abrasive tips apply constant pressure against the walls of the bore.

Q4: Will this brush change the dimensions of my precision bore?
A: No. Abrasive nylon filaments are designed to follow the contours of the surface. They will remove burrs and improve surface finish without significantly altering the base dimensions or tolerances of the workpiece.

Q5: What is the best grit for removing oxide layers from aluminum tubes?
A: We generally recommend a Medium Grit (#180 - #240) Silicon Carbide for aluminum. It is aggressive enough to strip the oxide layer but fine enough to leave a smooth, weld-ready surface.

Ready to Improve Your Internal Deburring Operations?

Contact us for technical recommendations, custom sizing, and bulk order quotes. Share your workpiece material, geometry, and equipment details for a prompt engineering review.
