Diamond Grit Tube Brush with diamond grit abrasive nylon for honing deburring

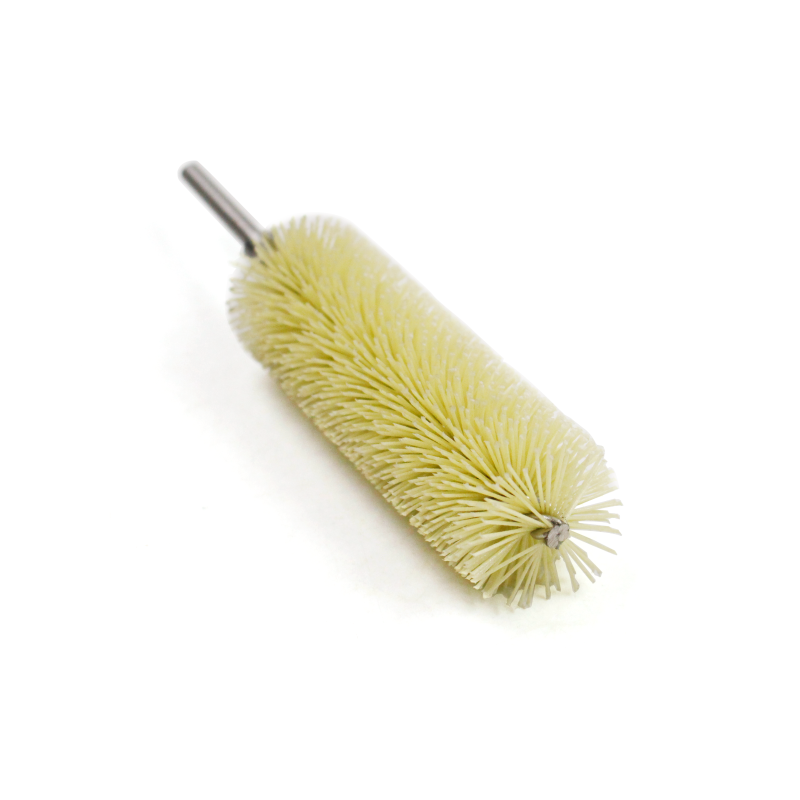

Custom diamond abrasive filament tube brush for industrial pipe cleaning and deburring
Industrial diamond abrasive filament tube brush with metal shaft for inner hole polishing and surface finishing
Diamond abrasive filament tube brush for industrial deburring
Diamond abrasive filament tube brush with shaft for industrial inner hole polishing and deburring

Diamond Grit Tube Brush

LONGGUANG currently has more than 3,000 industrial brush products, covering all industries such as auto parts, mechanical parts, hydraulic parts, etc. Our products are widely used in the polishing, de-rusting, and deburring of metal parts processing; metal sheet, strip cleaning, grinding, descaling; finishing of textile, printing, and dyeing leather products, sanding; dust removal, grinding and coating of paper and artificial boards Glue; cleaning, polishing, deburring of circuit boards; cleaning of glass and LCD substrates; cleaning and descaling of pipes; sealing and dust proofing of furniture, storage, and machinery.

Model: Customized as your request

Product Origin: Shanghai, China

Shipping Port: Shanghai Port, China

Payment: TT

Lead Time: 15-30 days after receiving your deposit

Product Overview

Our diamond grit tube brush is manufactured from diamond grit abrasive nylon and engineered for honing deburring, with key advantages including higher efficiency in specific hard-material applications, extended service life and excellent for heavy oil removal.

Also known as custom diamond grit tube brush, shank-type diamond abrasive hole brush or tube brush for honing deburring. The one-piece straight steel shank chucks directly into drill presses, machining centers and hand-held grinders – good concentricity and smooth running, with no separate arbor needed. The nylon carrier holds industrial diamond grit evenly embedded, so the brush removes burrs and tool marks from bore walls by uniform micro-removal toward a low-roughness, near-mirror finish with consistent results from part to part.

Specifications and Custom Sizes

Diamond Grit Tube Brush Specifications

Diameter, length, filament height, and trim length can be tailored

Material Composition

This brush is built from 2 material groups – the diamond abrasive filament synthetic resin bond and steel twisted or wound steel core:

  • Filament Material:  Diamond abrasive filament  synthetic resin bond with industrial diamond grit
  • Handle/Core Material:  Steel  twisted or wound steel core for high torque applications, with an integral straight steel shank on one end for direct chucking

Features and Applications

Diamond Grit Grinding Abrasive

  • Higher efficiency in specific hard-material applications  – outperforms standard silicon carbide tube brushes when processing tungsten carbide, ceramics, or hardened steel
  • Extended service life  – diamond abrasives maintain cutting action longer, reducing tool change frequency in automated lines
  • Excellent for heavy oil removal  – open brush structure allows slurry flow and oil discharge during cleaning
  • No bristle loss or falling off  – diamond grit is firmly bonded into the filament matrix
  • Customizable grit size  – available from coarse (for rapid deburring) to fine (for surface finishing)
  • Steel core provides high torsional strength  – suitable for pneumatic and electric rotary tools
  • Flexible nylon cushioning – the nylon carrier is inherently flexible, so the bristles conform to the bore wall profile and suit irregular bores and cross-hole openings without over-cutting the workpiece
  • Self-sharpening action – as the filaments wear, fresh diamond grit is continuously exposed from the nylon matrix, keeping the cutting ability stable over a long service life instead of glazing over

Note:  The price is typically higher than silicon carbide tube brushes of the same outer diameter, but the  significantly longer tool life and higher material removal rate  deliver lower cost per part in high-volume production.

Tube Brush for Honing Deburring

  • Deburring of through-holes and cross-holes in cemented carbide materials  – ideal for carbide cutting inserts, molds, and wear parts
  • Heavy oil and grease removal from industrial pipes  – especially in hydraulic systems, compressors, and engine oil galleries
  • Internal surface finishing of hardened steel tubes  (e.g., automotive fuel injector components)
  • Precision aperture grinding  where silicon carbide brushes wear out too quickly
  • Mold cavity and cooling hole polishing – removing wire-EDM and drilling tool marks from small mold cavities and cooling channel walls
  • Medical and aerospace micro-bore finishing – fine grinding of small-hole inner walls on precision medical devices and aircraft components to raise surface finish

Related internal links:


In practice the same brush is specified as double side diamond grit depending on the application.

Frequently Asked Questions (FAQ)

Q1: When should I choose a diamond grit tube brush instead of a silicon carbide brush?
Diamond abrasive outperforms standard silicon carbide tube brushes when processing tungsten carbide, ceramics and hardened steel. It maintains its cutting action longer, which reduces tool change frequency on automated production lines.

Q2: What jobs is the diamond grit tube brush used for?
Deburring of through-holes and cross-holes in cemented carbide materials such as cutting inserts, molds and wear parts; heavy oil and grease removal from hydraulic systems, compressors and engine oil galleries; and internal surface finishing of hardened steel tubes including fuel injector components.

Q3: Is it suitable for pneumatic and electric rotary tools?
Yes. The twisted or wound steel core provides high torsional strength for high-torque rotary tools. Diameter, length, filament height and trim length can all be tailored to your tooling and workpiece.

Q4: Does the diamond grit come off the filaments?
No. The industrial diamond grit is firmly bonded into the filament matrix with a synthetic resin bond, so there is no bristle loss or falling off during operation.

Q5: Is the higher price of a diamond brush worth it?
The price is typically higher than a silicon carbide tube brush of the same outer diameter, but the significantly longer tool life and higher material removal rate deliver a lower cost per part in high-volume production.

Ready to Improve Your Honing Deburring Operations?

Contact us for technical recommendations, custom sizing, and bulk order quotes. Share your workpiece material, geometry, and equipment details for a prompt engineering review.
