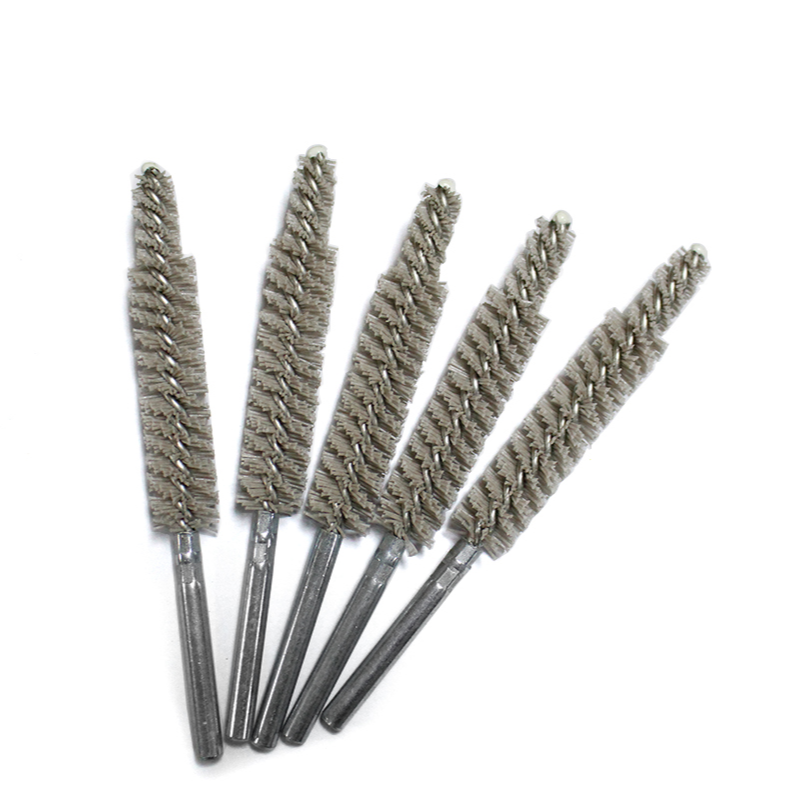

Double Spiral AO Abrasive Tube Brush – Custom Shape for Irregular Stepped Holes

Product Name:
Double Spiral AO Abrasive Tube Brush – Custom Shape for Stepped, Tapered & Irregular Holes

Product Size:
Customizable according to customer requirements – brush body shape and filament profile are fully customizable

Material Composition:

• Filament Material: Aluminum oxide (AO) abrasive-filled nylon filaments

• Handle/Stem Material: Steel

Product Features:

• Customizable brush body shape – brush body and filament profile can be tailored to match complex internal geometries

• Designed for irregular holes – specifically stepped holes ,  tapered-bottom holes, and various other irregular-shaped internal cavities

• Smoother cutting action – aluminum oxide abrasive provides slightly lower hardness than silicon carbide, resulting in smoother, more controlled cutting action ideal for softer materials

• Ideal for aluminum & soft alloys – commonly used for deburring aluminum alloy and other soft alloy workpieces without over-cutting or surface damage

• Widely used in automotive parts manufacturing – as widely applied as silicon carbide brushes in the automotive industry for transmission housings, engine components, and aluminum castings

• No bristle loss & falling off – safe for precision assemblies and critical components

• Excellent surface finish – achieves scratch-free surface treatment on soft metals

• Long service life – consistent abrasive performance throughout brush life

Applicable Scenarios:

• Stepped holes – cleaning and deburring internal cavities with multiple diameters

• Tapered-bottom holes – finishing conical-bottom blind holes that standard brushes cannot properly contact

• Irregular-shaped internal cavities – custom-profile brushes for non-cylindrical internal geometries

• Aluminum alloy part deburring – removing burrs from automotive aluminum castings and components

• Soft alloy finishing – deburring brass, copper, and other non-ferrous alloys

• Automotive parts manufacturing & machining – engine blocks, transmission housings, and aluminum components

• Precision aperture grinding –  precision hole finishing  in irregular cavities

• Hydraulic valve block cleaning – irregular internal passages in hydraulic systems

What Makes Custom-Shape AO Abrasive Tube Brushes Different?

Standard tube brushes are designed for straight, cylindrical bores. But many precision components feature complex internal geometries – stepped holes with multiple diameters, tapered-bottom blind holes, conical cavities, and other irregular shapes that standard brushes cannot effectively clean or deburr.

Our Double Spiral AO Abrasive Tube Brush – Custom Shape solves this problem. The brush body shape and filament profile are fully customizable to match your exact internal cavity geometry. Whether you need a stepped profile to clean multi-diameter holes, a tapered profile for conical bottoms, or a completely custom shape for unique irregular cavities, we can engineer the brush to fit.

The aluminum oxide (AO) abrasive filaments deliver a smoother cutting action than silicon carbide, making this brush particularly suitable for aluminum alloy and other soft alloy applications where over-cutting or surface scratching must be avoided.

Custom Shape vs. Standard Cylindrical Tube Brush

Comparison with Silicon Carbide (SiC) Abrasive Tube Brush

For applications requiring aggressive cutting on ferrous metals and hardened surfaces, see our standard Double Spiral Silicon Carbide Abrasive Tube Brush.

Key Applications in Detail

Stepped Holes
Components with multiple internal diameters – such as hydraulic valve bodies, engine cylinders, and precision housings – require cleaning and deburring across all bore sections. Our custom-shape brush features a stepped filament profile that contacts each diameter section, ensuring complete surface treatment.

Tapered-Bottom Holes
Conical-bottom blind holes are common in fluid power components and aerospace parts. Standard flat-bottom brushes cannot properly contact the tapered surface. Our custom brush with tapered filament profile matches the cone angle, delivering abrasive action to the entire bottom surface.

Irregular-Shaped Internal Cavities
For completely unique internal geometries – oval bores, D-shaped cavities, or multi-lobed passages – we engineer a brush body and filament profile that precisely matches the cavity shape, ensuring uniform cleaning and deburring across all internal surfaces.

Aluminum Alloy Components
The smoother cutting action of AO abrasive makes this brush ideal for aluminum alloy parts in automotive applications, such as transmission housings, intake manifolds, and cylinder heads, where over-cutting or surface scratching cannot be tolerated.

For Aggressive Cutting on Hard Materials

If your application requires aggressive cutting action on steel, iron, or hardened materials, consider our Double Spiral Silicon Carbide Abrasive Tube Brush.

For non-abrasive internal cleaning with steel wire, see our Single Spiral Steel Tube Brush.

Related Products You May Need:

• For aggressive cutting on hard materials, see Double Spiral Silicon Carbide Abrasive Tube Brush

• For blind hole applications, explore Stainless Steel Wire Tube Brush – Designed for Blind Holes

• For cross-hole deburring, check Cross Hole Brush

• For honing and plateau finishing, see Honing Brush

• Browse the full Tube Brush Series

Why Choose Custom-Shape AO Abrasive Tube Brushes?

For manufacturers dealing with complex internal geometries on aluminum and soft alloy components, our custom-shape AO abrasive tube brush delivers:

• Perfect fit for irregular cavities – custom brush body matches your exact hole shape

• Complete surface contact – no missed areas in stepped, tapered, or irregular holes

• Smoother cutting action – AO abrasive protects soft metals from over-cutting

• Automotive-grade performance – widely used and trusted in automotive parts manufacturing

• Customizable to your part – brush shape, filament profile, and grit size all tailored

• Non-destructive finishing – removes burrs without scratching or damaging soft alloys

• Consistent results – double spiral construction for uniform abrasive distribution

Customization Available
We offer complete customization of brush body shape, filament profile (stepped, tapered, or irregular), brush diameter, stem length, abrasive grit size, and filament density to match your exact irregular hole cleaning and deburring requirements. Contact us with your part drawing for engineering recommendations.
