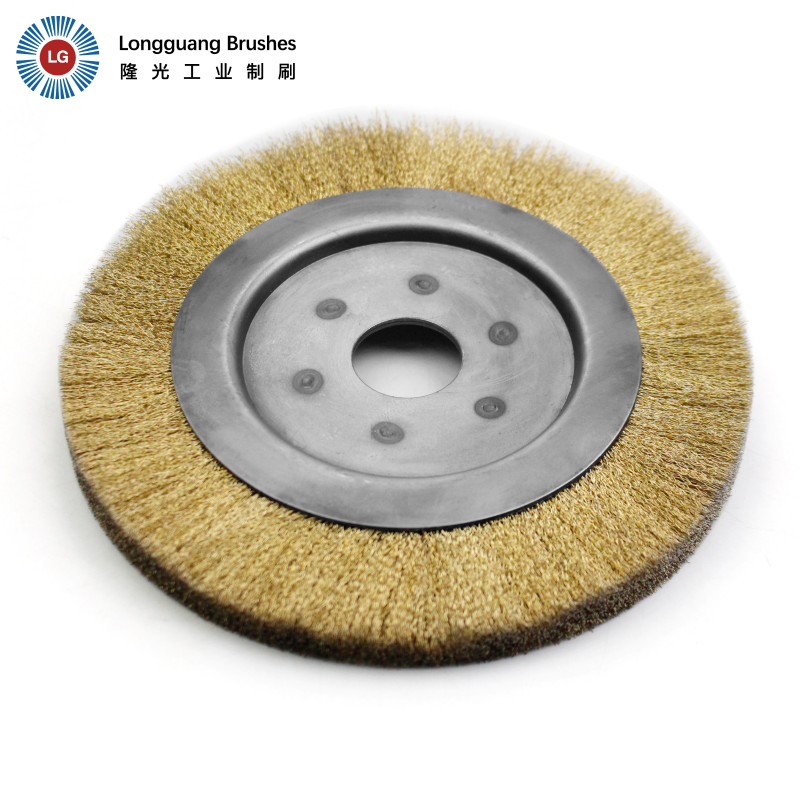

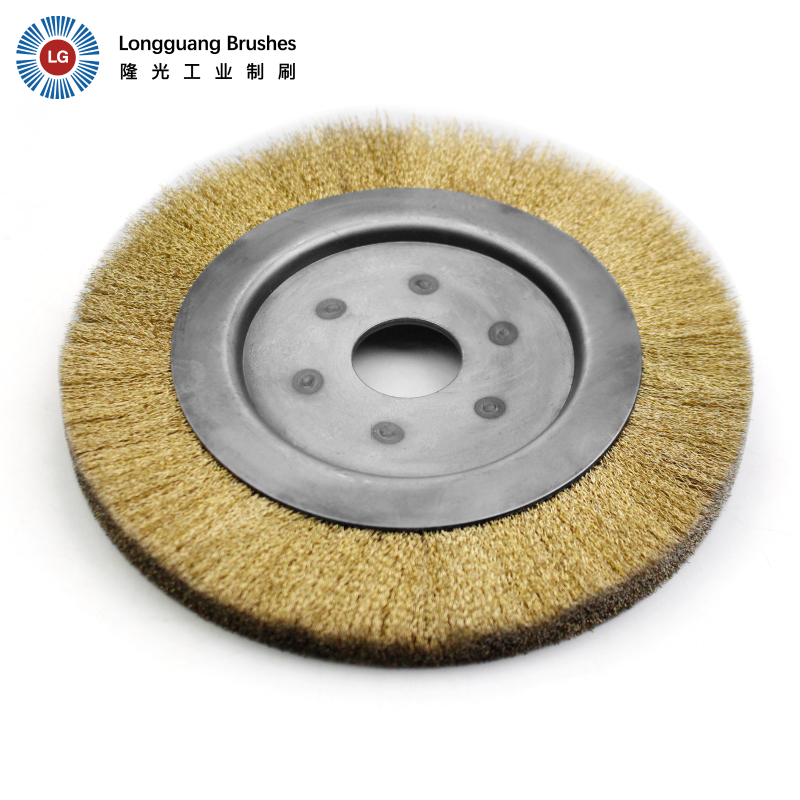

Product Overview
Our steel wire wide-face wheel brush is manufactured from steel wire (brass tone) and engineered for large surface treatment, with key advantages including heavy-duty rotary tool, maximum surface contact and densely packed high-tensile steel wire.
Also known as custom steel wire wide-face wheel brush, copper-plated steel wire wheel brush, industrial wheel brush or wheel brush for large surface treatment.
Specifications and Custom Sizes
Custom Steel Wire Wheel Brush Sizes and Grits
Customizable according to customer requirements
Reference Drawing:
Standard Series:
| Dia A | Thickness B | Hole D.C | Plate D. D | Trim l. E | Chip F | RPM(max) | Part No. |
|---|---|---|---|---|---|---|---|
| Ø0.3 Copper Plated | |||||||
| 100 (4") | 16-18 | 20 | 56 | 22 | 32 | 8000 | LT3020100 |
| 125 (5") | 16-18 | 20 | 65 | 30 | 32 | 6000 | LT3020125 |
| 150 (6") | 20-22 | 22 | 90 | 30 | 53 | 6000 | LT3022150 |
| 32 | 90 | 30 | 53 | 6000 | LT3032150 | ||
| 175 (7") | 20-22 | 32 | 90 | 42 | 53 | 6000 | LT3032175 |
| 200 (8") | 20-22 | 22 | 116 | 42 | 53 | 4500 | LT3022200 |
| 32 | 116 | 42 | 53 | 4500 | LT3032200 | ||
| 250 (10") | 25-28 | 32 | 156 | 47 | 83 | 3600 | LT3032250 |
| 300 (12") | 25-28 | 32 | 156 | 60 | 83 | 3600 | LT3032250 |
Material Composition
This brush is built from 2 material groups – the high-tensile steel wire and steel hub:
- Filament Material: High-tensile carbon steel wire with copper plating (crimped style, available in various diameters)
- Wheel/Backing Material: Steel hub with densely packed wire fill
Note on the brass-tone finish: the wire used in this series is high-carbon (carbon) steel with a copper plating. The plating protects the wire against corrosion during storage and handling – it does not change the core material, which is carbon steel. This is why the bristles show a brass tone in photos while delivering the cutting performance of carbon steel wire.
Features and Applications
Steel Wire Wheel Brush
- Heavy-duty rotary tool – engineered for high-efficiency surface treatment on large areas
- Maximum surface contact – broad wheel face provides maximum contact for rapid cleaning and preparation
- Densely packed high-tensile steel wire – delivers consistent and aggressive cutting action for demanding applications
- Multiple wire options – available in various wire diameters and styles (including crimped) to match specific requirements
- Rapid contaminant removal – quickly removes rust, scale, old coatings, and welding spatter from steel plates, beams, and large fabrications
- Essential surface preparation tool – ideal for surface leveling, edge cleaning, and creating uniform profile prior to welding or painting
- Long service life – heavy-duty construction withstands rigorous industrial use
- Reinforced flange hub – stamped steel flange anchors the wire fill firmly, keeping the wheel smooth and balanced at speed without filament shedding
- Crimped wire flex – the wavy crimp profile adds flexibility so the broad face follows slight surface undulations for an even, uniform finish
What Makes Steel Wire Wheel Brushes Different?
Our Steel Wire Wheel Brushes are heavy-duty rotary tools engineered for high-efficiency surface treatment on large areas. Mounted on bench grinders, angle grinders, or stationary equipment, their broad wheel face provides maximum contact for rapid cleaning and preparation. Constructed with densely packed, high-tensile steel wire (available in various diameters and styles, including crimped), they deliver a consistent and aggressive cutting action.
These brushes are ideal for quickly removing rust, scale, old coatings, and welding spatter from steel plates, beams, and large fabrications. They are essential for surface leveling, edge cleaning, and creating a uniform profile prior to welding or painting in industries like metal fabrication, structural steelwork, shipbuilding, and foundry operations.
Steel Wire Wheel Brush vs. Single Layer Wheel Brush
| Feature | Steel Wire Wheel (This Product) | Single Layer Wheel Brush |
|---|---|---|
| Wire density | Densely packed | Single layer |
| Cutting action | Aggressive, consistent | Moderate, flexible |
| Best for | Heavy rust, scale, weld spatter removal | Light cleaning, deburring, finishing |
| Surface contact | Maximum (broad wheel face) | Moderate |
| Industrial applications | Heavy fabrication, shipbuilding, foundries | Workshops, general finishing |
| Material removal rate | High | Moderate |
| Conformity to contours | Moderate | Excellent |
Wire Options Available
| Wire Type | Best For |
|---|---|
| Crimped steel wire | General cleaning, rust removal, surface preparation |
| Fine diameter wire | Light deburring, finer surface finish |
| Coarse diameter wire | Aggressive scale removal, heavy weld spatter cleaning |
Wheel Brush for Large Surface Treatment
- Metal fabrication – cleaning large steel plates and structural components before welding or coating
- Structural steelwork – removing mill scale, rust, and contaminants from beams and columns
- Shipbuilding – surface preparation on hull plates and structural members
- Foundry operations – cleaning castings and removing sand residue and scale
- Rust removal – eliminating heavy rust from large metal surfaces
- Weld spatter cleaning – removing post-weld spatter and slag from fabrication joints
- Surface leveling – creating uniform profile for coating or painting adhesion
- Heavy equipment maintenance – cleaning large industrial components and machinery
Key Applications in Detail
Metal Fabrication
Prior to welding or coating, large steel plates and structural components must be free of mill scale, rust, and contaminants. Our steel wire wheel brush rapidly cleans expansive surfaces, significantly reducing preparation time compared to manual methods.
Structural Steelwork
Beams, columns, and structural members require consistent surface preparation for coating adhesion. The broad wheel face provides maximum contact across wide surfaces, ensuring uniform cleaning and profile creation.
Shipbuilding
Hull plates and structural members in marine environments develop heavy rust and scale that must be removed before coating or repair. Our heavy-duty wheel brush delivers the aggressive action required for shipyard applications.
Foundry Operations
Castings emerge from molds with sand residue, scale, and surface imperfections. Steel wire wheel brushes provide efficient cleaning and surface leveling on large castings.
Even Finishing with Crimped Wire Flexibility
Compared with knotted wheels, the crimped wire profile cushions the contact, so the wheel keeps even pressure on slightly uneven surfaces – useful for uniform descaling and finishing passes where a rigid knot wheel would streak. Multiple bore sizes (20 / 22 / 32 mm) fit polishers, bench grinders and stationary machines for quick changeover between workstations.
For Lighter Duty Applications
If your application requires lighter cleaning, better contour conformity, or versatile finishing across mixed materials , consider our Single Layer Wheel Brush .
For aggressive cup-style cleaning on confined surfaces, see our Twisted Knot Cup Brush .
In practice the same brush is specified as wide face wire wheel or steel wire brush grinding wheel depending on the application.
Frequently Asked Questions (FAQ)
Q1: What wire types and diameters are available for this wide-face wheel brush?
Crimped steel wire is standard, with fine diameter wire for light deburring and a finer surface finish, or coarse diameter wire for aggressive scale removal and heavy weld spatter cleaning. Copper-plated wire is a standard option.
Q2: What sizes does the steel wire wide-face wheel brush come in?
Standard diameters run from 100 mm (4 inch) to 300 mm (12 inch), with 16-28 mm thickness and 20-32 mm bore. Sizes are customizable according to customer requirements.
Q3: Why choose a wide-face wheel for large surface treatment?
The broad wheel face provides maximum surface contact, so rust, scale, old coatings and welding spatter are removed quickly from steel plates, beams and large fabrications, which reduces labor time on large-scale cleaning projects.
Q4: How does it differ from a single-layer wheel brush?
The steel wire wide-face wheel is densely packed for aggressive, consistent cutting and high material removal rates. A single-layer wheel brush is lighter and more flexible, better suited to light cleaning, deburring and finishing on contoured parts.
Q5: What is the steel wire wide-face wheel brush used for?
Metal fabrication, structural steelwork, shipbuilding and foundry operations - removing mill scale, rust and contaminants before welding or coating, cleaning weld spatter, and creating a uniform surface profile.
Ready to Improve Your Large Surface Treatment Operations?
Contact us for technical recommendations, custom sizing, and bulk order quotes. Share your workpiece material, geometry, and equipment details for a prompt engineering review.
Related Products You May Need:
- For versatile lighter duty finishing, see Single Layer Wheel Brush
- For aggressive cup-style cleaning, explore Twisted Knot Cup Brush
- For twisted knot wheel aggression, check Twist Knot Wheel Brush
- For large-scale plate surface preparation, see Twisted Knot Plate Brush
- Browse the full Wheel Brush Series
Why Choose Steel Wire Wheel Brushes for Heavy Fabrication?
For heavy fabrication, shipbuilding, and foundry operations where efficiency and aggressive action are critical , our steel wire wheel brush delivers:
- Maximum surface contact – broad wheel face covers large areas quickly
- Aggressive consistent cutting – densely packed steel wire for rapid material removal
- Heavy-duty construction – withstands rigorous industrial use on bench grinders, angle grinders, and stationary equipment
- Versatile wire options – multiple diameters and styles for specific applications
- Essential surface preparation – creates uniform profile for welding or painting
- High efficiency – reduces labor time on large-scale cleaning projects
- Proven industrial performance – trusted in metal fabrication, structural steelwork, shipbuilding, and foundries
Customization Available
We offer custom wheel diameters, arbor hole sizes, wire materials (carbon steel or stainless steel), wire diameters, and trim lengths to match your specific heavy-duty surface treatment requirements. Contact us for technical recommendations.
