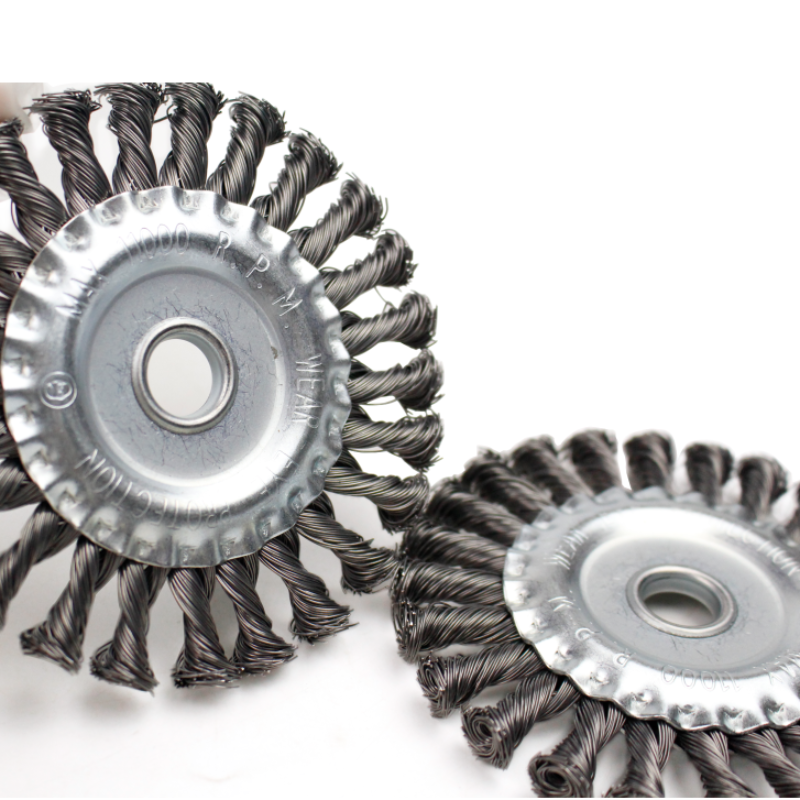

Product Overview
Our steel wire knotted wheel brush is manufactured from steel wire and engineered for heavy-duty surface prep, with key advantages including ultimate heavy-duty performance, superior impact resistance and maximum cutting power.
Also known as custom steel wire knotted wheel brush, industrial wheel brush or wheel brush for heavy-duty surface prep.
Specifications and Custom Sizes
Steel Wire Wheel Brush Specifications
Customizable according to customer requirements
Reference Drawing:
Standard Series:
| Dia A | Thickness B | Hole D.C | Plate D. D | Trim l. E | Chip F | RPM(max) | Part No. | |
|---|---|---|---|---|---|---|---|---|
| Ø0.35 Carbon Steel | Ø0.5 Carbon Steel | |||||||
| 100 (4") | 13 | 16 | 62 | 20 | 32 | 12500 | LN3516100 | LN5016100 |
| 13 | 22.2 | 62 | 20 | 32 | 12500 | LN3522100 | LN5022100 | |
| 125 (5") | 14 | 16 | 79 | 23 | 32 | 10000 | LN3516125 | LN5016125 |
| 14 | 22.2 | 79 | 23 | 32 | 10000 | LN3522125 | LN5022125 | |
| 150 (6") | 14 | 22.2 | 97 | 26 | 53 | 9000 | LN3522150 | LN5022150 |
| 200 (8") | 14 | 22.2 | 115 | 42 | 53 | 8500 | LN3522200 | LN5022200 |
Material Composition
This brush is built from 2 material groups – the high-carbon steel wire and heavy-duty steel hub:
- Filament Material: High-carbon steel wire, twisted into dense cables
- Wheel/Backing Material: Heavy-duty steel hub with twisted knot construction
Features and Applications
Knot Flat Wire Wheel
- Ultimate heavy-duty performance – engineered with densely packed cables of twisted high-carbon steel wire for exceptionally durable and aggressive cutting face
- Superior impact resistance – far outperforms standard wire wheel brushes in both impact resistance and service life
- Maximum cutting power – delivers maximum power for removing tenacious scale, heavy rust, and tough coatings from large steel structures, castings, and heavy equipment
- Extended service life – superior durability minimizes downtime for brush changes
- Cost-effective solution – ideal for continuous operation in shipyards, heavy fabrication, and major construction projects
- Aggressive cutting action – twisted knot construction provides high-impact material removal
- Heavy-duty industrial design – built for the most demanding industrial environments
- Reinforced hub, secure at speed – the stamped steel hub anchors the twisted cables firmly, resisting wire shedding at high RPM for safe, stable running
- Open knot spacing clears debris – wide gaps between the cable knots let removed scale, paint and slag escape instead of clogging the brushing face
- Angle-grinder ready – center arbor hole fits standard angle grinders and bench motors for simple mounting and quick changeover
What Makes Twist Knot Wheel Brushes Different?
Our Twist Knot Wheel Brushes represent the ultimate in heavy-duty rotary surface preparation. Engineered with densely packed cables of twisted high-carbon steel wire, this construction creates an exceptionally durable and aggressive cutting face that far outperforms standard wire wheel brushes in both impact resistance and service life.
Designed for the most demanding industrial environments, they deliver maximum power for removing tenacious scale, heavy rust, and tough coatings from large steel structures, castings, and heavy equipment. Their superior durability minimizes downtime for brush changes, making them a cost-effective solution for continuous operation in shipyards, heavy fabrication, and major construction projects.
Twist Knot vs. Standard Crimped Wire Wheel Brush
| Feature | Twist Knot (This Product) | Standard Crimped Wire Wheel |
|---|---|---|
| Wire construction | Twisted cables | Single crimped wires |
| Cutting action | Maximum aggressive | Moderate |
| Impact resistance | Exceptional | Standard |
| Service life | Extended (far outperforms standard) | Moderate |
| Best for | Tenacious scale, heavy rust, tough coatings | General rust removal, light cleaning |
| Wire breakage | Significantly reduced | Moderate |
| Downtime for changes | Minimized | Regular changes required |
| Continuous operation suitability | Excellent | Limited |
Wheel Brush for Heavy-duty Surface Prep
- Shipyards – surface preparation on hull plates, decks, and structural members
- Heavy fabrication – removing mill scale, rust, and coatings from large steel structures
- Major construction projects – cleaning structural steel beams and columns before coating
- Foundry operations – removing tenacious scale and sand residue from large castings
- Heavy equipment maintenance – restoring surfaces on mining equipment, construction machinery, and industrial components
- Tough coating removal – stripping epoxy, marine paint, and industrial coatings from steel surfaces
- Weld scale removal – cleaning heavy weld spatter and slag from fabrication joints
- Continuous operation lines – high-durability tool for production environments
- Stone and metal coarse grinding – coarse grinding and descaling on stone and metal workpieces
Key Applications in Detail
Shipyards
Surface preparation on hull plates, decks, and structural members requires tools that can handle marine-grade coatings, heavy rust, and tenacious scale. Our twist knot wheel brush delivers the aggressive action needed for shipyard environments while providing extended service life to minimize tool changes during large-scale projects.
Heavy Fabrication
Large steel structures, heavy equipment, and industrial components require removal of mill scale, heavy rust, and tough coatings before welding or painting. The twist knot construction provides maximum cutting power for these demanding applications.
Major Construction Projects
Structural steel beams and columns must be cleaned and profiled before coating application. Our twist knot wheel brush handles the high-volume requirements of major construction projects with superior durability and reduced downtime.
Foundry Operations
Large castings emerge from molds with tenacious scale and sand residue that standard brushes cannot remove efficiently. The aggressive cutting face of our twist knot wheel brush tackles these challenging surfaces with ease.
Continuous Operation Environments
For production lines and continuous operation environments where downtime directly impacts productivity, our twist knot wheel brush delivers extended service life and reduced brush change frequency – significantly lowering operating costs.
Weld Deslagging and Frame Restoration
The open knot spacing keeps removed weld spatter, slag and paint flakes from clogging the brushing face, so the wheel keeps cutting through weld seams on pipe and structural work. The same rugged build suits frame and chassis restoration on vehicles and construction machinery, and the center-hole mounting fits standard angle grinders for fast swaps between workstations.
For Lighter Duty Applications
If your application requires lighter cleaning, better contour conformity, or general purpose finishing , consider our Steel Wire Wheel Brush or Single Layer Wheel Brush .
For aggressive cup-style cleaning on confined surfaces, see our Twisted Knot Cup Brush .
In practice the same brush is specified as twist knot wire wheel depending on the application.
Frequently Asked Questions (FAQ)
Q1: Why choose a twist knot wheel over a standard crimped wire wheel brush?
The twisted high-carbon steel wire cables create maximum aggressive cutting action with exceptional impact resistance. A standard crimped wheel gives moderate cutting, while the twist knot design removes tenacious scale, heavy rust and tough coatings far faster.
Q2: How does the service life compare with standard wire wheel brushes?
The twisted cable construction far outperforms standard wire wheel brushes in both impact resistance and service life. Wire breakage is significantly reduced, so downtime for brush changes is minimized in continuous operation.
Q3: What sizes are available for the steel wire knotted wheel brush?
Standard diameters run from 100 mm (4 inch) to 200 mm (8 inch), with 13-14 mm thickness and 16-22.2 mm bore, in 0.35 mm and 0.5 mm carbon steel wire. Sizes are customizable according to customer requirements.
Q4: What is the twist knot wheel brush used for?
Shipyards, heavy fabrication, major construction and foundries - surface preparation on hull plates, decks and structural members, removing mill scale, rust and coatings from large steel structures, and stripping epoxy, marine paint and industrial coatings.
Q5: Is it cost-effective for continuous operation lines?
Yes. The extended service life minimizes downtime for brush changes, which makes it a cost-effective solution for continuous operation in shipyards, heavy fabrication and major construction projects.
Ready to Improve Your Heavy-Duty Surface Prep Operations?
Contact us for technical recommendations, custom sizing, and bulk order quotes. Share your workpiece material, geometry, and equipment details for a prompt engineering review.
Related Products You May Need:
- For standard heavy-duty wheel cleaning, see Steel Wire Wheel Brush
- For versatile lighter duty finishing, explore Single Layer Wheel Brush
- For aggressive cup-style cleaning, check Twisted Knot Cup Brush
- For large-scale plate surface preparation, see Twisted Knot Plate Brush
- Browse the full Wheel Brush Series
Why Choose Twist Knot Wheel Brushes for Heavy Industrial Applications?
For shipyards, heavy fabrication, and continuous industrial operations where maximum cutting power and minimal downtime are critical , our twist knot wheel brush delivers:
- Exceptional impact resistance – twisted cable construction withstands heavy impact
- Maximum aggressive cutting – removes tenacious scale, heavy rust, and tough coatings
- Extended service life – far outperforms standard wire wheel brushes
- Minimized downtime – fewer brush changes for continuous operation
- Cost-effective heavy-duty solution – lower operating costs over time
- Proven industrial performance – trusted in shipyards, heavy fabrication, major construction, and foundries
- Superior durability – built for the most demanding environments
Customization Available
We offer custom wheel diameters, arbor hole sizes, wire materials, twist densities, and trim lengths to match your specific heavy-duty surface preparation requirements. Contact us for technical recommendations.
