LONGGUANG currently has more than 3,000 industrial brush products, covering all industries such as auto parts, mechanical parts, hydraulic parts, etc. Our products are widely used in the polishing, de-rusting, and deburring of metal parts processing; metal sheet, strip cleaning, grinding, descaling; finishing of textile, printing, and dyeing leather products, sanding; dust removal, grinding and coating of paper and artificial boards Glue; cleaning, polishing, deburring of circuit boards; cleaning of glass and LCD substrates; cleaning and descaling of pipes; sealing and dust proofing of furniture, storage, and machinery.
Couldn't load pickup availability
Our sandpaper stacked tube brush is manufactured from laminated abrasive sheets (red-brown) and engineered for internal bore finishing, with key advantages including stacked sandpaper sheet construction, fully customizable abrasive parameters and industrial adhesive bonding.
Also known as custom sandpaper stacked tube brush, industrial tube brush or tube brush for internal bore finishing.
Customizable according to customer requirements – brush body shape, filament profile, shaft dimensions, and abrasive configuration are fully customizable. Multiple filament material options available; different filament combinations can be tailored to customer specifications. Image shown is customer-customized version.
This brush is built from 2 material groups – the stacked sandpaper sheets arranged around and and metal center shaft:
What Makes Sandpaper Tube Brush Different?

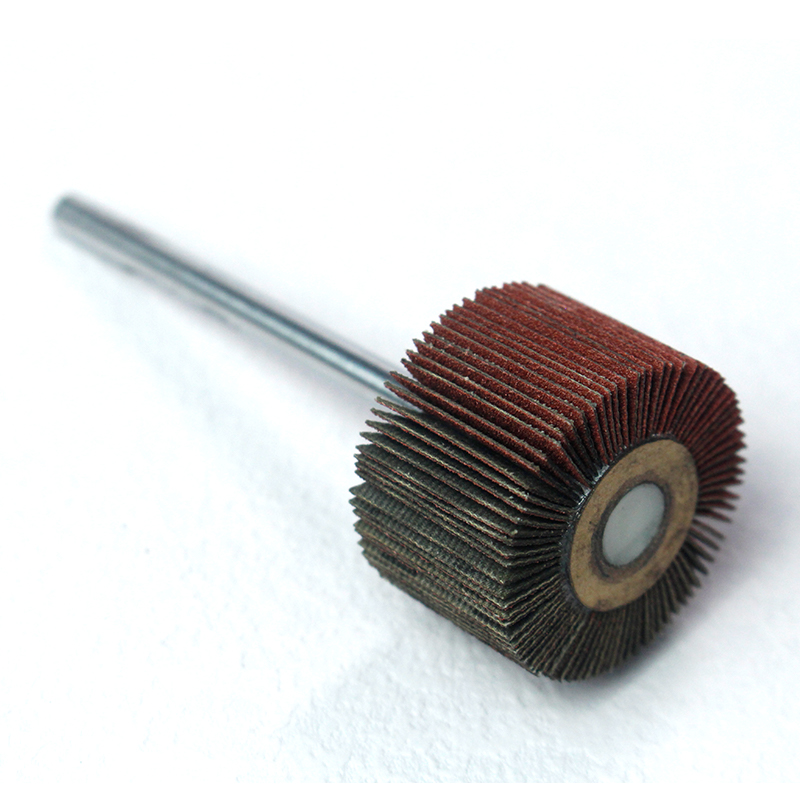

Our Sandpaper Tube Brush features a unique construction of stacked sandpaper sheets arranged around and bonded to a metal center shaft. This design creates a cylindrical abrasive brush surface specifically engineered for internal hole polishing applications.
Stacked Sandpaper Construction:
Multiple sandpaper discs or strips are stacked and arranged around the center shaft, with each layer providing abrasive action as the brush rotates. The stacking density, sandpaper length, and overall brush diameter are all customizable to match specific hole sizes and finishing requirements.
Fully Customizable Abrasive Parameters:
Unlike standard abrasive tube brushes limited to fixed specifications, our sandpaper tube brush offers complete customization of:
Customer-Specific Design:
Since this is a customer-customized product, every parameter is tailored to your specific hole dimensions and finishing objectives. The result is a brush that fits your workpiece perfectly and delivers optimal polishing performance.
Sandpaper Tube Brush vs. Abrasive Nylon Tube Brush
| Feature | Sandpaper Tube Brush (This Product) | Abrasive Nylon Tube Brush |
|---|---|---|
| Abrasive medium | Sandpaper sheets | Abrasive-embedded nylon filaments |
| Customization level | Complete (length, height, density, grit) | Moderate |
| Best for | Hole polishing, surface smoothing | Deburring, edge breaking, surface refinement |
| Substrate material | Paper backing | Nylon filament |
| Conformity to contours | Moderate (stacked sheets) | Excellent (flexible filaments) |
| Heat sensitivity | Moderate | Low |
| Grit range | Wide (coarse to fine) | Moderate |
Key Applications in Detail
Hole Polishing on Various Diameters
The brush is suitable for different sizes of workpiece holes. The customizable outer diameter allows precise matching to your specific hole dimension, ensuring full surface contact during rotation.
Internal Surface Finishing
Stacked sandpaper sheets provide consistent abrasive action across the entire internal surface of cylindrical holes, smoothing tool marks, removing light oxidation, and refining surface finish.
Customer-Specific Hole Geometries
For holes with non-standard dimensions, tapered profiles, or specific depth requirements, the sandpaper tube brush can be customized to match. Sandpaper length, stacking density, and grit selection are all tailored to your application.
Automated Production Polishing
When mounted on CNC machines or dedicated polishing equipment, the sandpaper tube brush provides consistent, repeatable hole finishing results across high-volume production runs.
Q1: How is a sandpaper stacked tube brush constructed?
Multiple sandpaper discs or strips are stacked and arranged around a metal centre shaft, then bonded with a strong industrial adhesive to form a cylindrical abrasive brush surface. The construction is similar to flat rod brush manufacturing.
Q2: What can be customized on the sandpaper tube brush?
Sandpaper length (the height of abrasive surface along the shaft), sandpaper height (radial reach from shaft to outer diameter), stacking density (number of layers per unit length) and grit size from coarse to fine are all tailor-made to your workpiece.
Q3: How does it compare with an abrasive nylon tube brush?
The sandpaper version uses paper-backed abrasive sheets with complete customization of length, height, density and grit, which suits hole polishing and surface smoothing. Abrasive nylon tube brushes use abrasive-embedded flexible filaments and conform better to complex contours.
Q4: What operations is the sandpaper tube brush suitable for?
Internal surface finishing of cylindrical cavities, hole polishing across a range of diameters, surface conditioning to remove scratches, tool marks or oxidation from internal bores, edge blending at hole entrances, and CNC-compatible automated hole finishing.
Q5: Is it suitable for rotary power tools and automated equipment?
Yes. The rigid metal centre shaft provides stability and transmits torque, which makes the brush suitable for rotary power tools, and the design is compatible with automated finishing equipment for production hole polishing.
Contact us for technical recommendations, custom sizing, and bulk order quotes. Share your workpiece material, geometry, and equipment details for a prompt engineering review.
For Related Tube Brush Products
For abrasive nylon filament tube brushes, see our Double Spiral AO Abrasive Tube Brush and Double Spiral Silicon Carbide Abrasive Tube Brush .
For steel wire tube brushes for cleaning, explore Stainless Steel Wire Tube Brush and Single Spiral Steel Tube Brush .
Related Products You May Need:
Why Choose Sandpaper Tube Brush for Hole Polishing?
For hole polishing applications where customization and surface finish quality are critical , our sandpaper tube brush delivers:
Customization Available
We offer complete customization of brush outer diameter, sandpaper length (abrasive zone height), stacking density (layers per unit length), sandpaper grit size (from coarse to fine), shaft diameter, shaft length, and mounting configuration to match your exact hole polishing requirements. Contact us with your part specifications for engineering recommendations.
