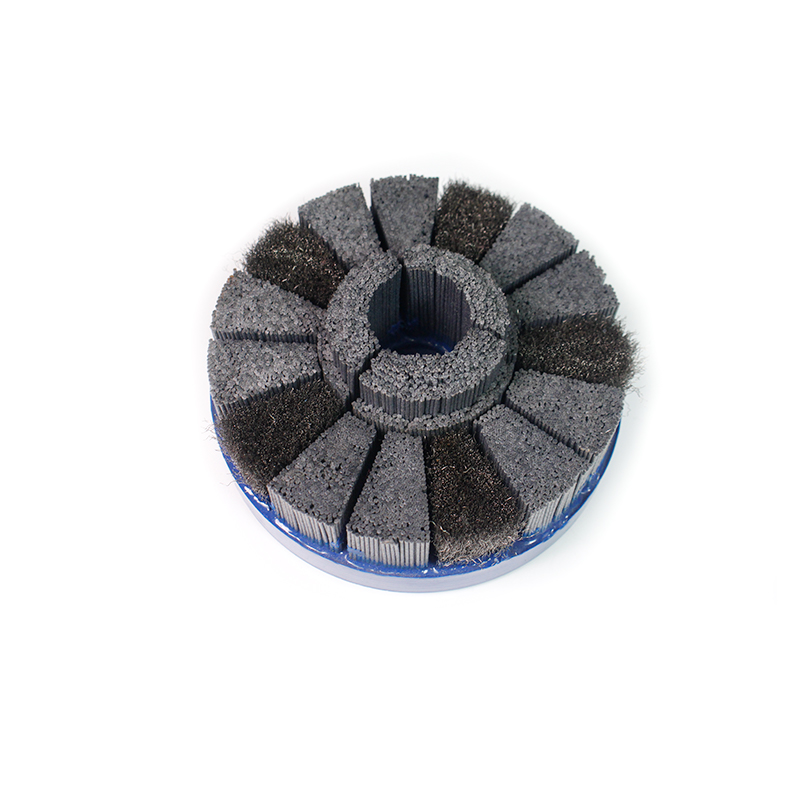

Custom Hybrid Disc Brush | Silicon Carbide Abrasive Filament and Stainless Steel Wire Mixed for Uniform Surface Roughness

Product Name:
Custom Hybrid Disc Brush (Silicon Carbide Abrasive + Stainless Steel Wire Mixed Filament Disc Brush)

Product Size:
Customizable according to customer requirements – brush body shape, filament profile, and base plate are fully customizable. Multiple filament material options available; different filament combinations can be tailored to customer specifications. Image shown is customer-customized version.

Material Composition:

• Filament Material: Silicon carbide (SiC) abrasive filament + stainless steel wire, arranged according to customer requirements

• Handle/Backing Material: PP/PVC base with resin injection molded construction

Product Features:

• Hybrid filament construction – silicon carbide abrasive filament and stainless steel wire combined in single brush, arranged according to customer specifications

• Uniform surface roughness – hybrid design helps achieve consistent overall roughness across the entire workpiece surface

• Fine-tuning deburring capability – mixed filaments provide adjustable balance between deburring action and surface roughness control

• Customizable filament arrangement – different filament combinations can be tailored to specific application requirements; multiple material options available

• Resin injection molded base – PP/PVC construction with injection molding for secure filament anchoring

• Contour following design – center protrusion configuration available for workpieces with concave features (customer requirement to reach recessed areas)

• Surface roughness maintenance – designed to deburr while maintaining target surface roughness parameters

• Note on finish limitation – this brush cannot achieve mirror finish; intended for uniform roughness and deburring applications

Applicable Scenarios:

• Concave workpiece finishing – center-protrusion design for parts with recessed center areas requiring full surface contact

• Surface roughness uniforming – achieving consistent overall roughness across entire workpiece surface

• Deburring with roughness control – removing burrs while maintaining specific surface roughness parameters

• Custom customer-specific applications – tailored filament combinations for unique finishing requirements

• Metal surface conditioning – intermediate finishing between rough grinding and fine polishing

• Automated finishing lines – CNC compatible for production finishing operations

What Makes Custom Hybrid Disc Brush Different?

Our Custom Hybrid Disc Brush combines two distinct filament types – silicon carbide abrasive filament and stainless steel wire – in a single disc brush, arranged according to customer specifications. This hybrid construction provides unique finishing characteristics that cannot be achieved with single-filament brushes.

The Hybrid Advantage:

The silicon carbide abrasive filaments provide controlled cutting action for deburring and surface refinement. The stainless steel wire adds mechanical cleaning action and helps maintain consistent surface roughness. When combined, these two materials work together to achieve uniform overall roughness across the entire workpiece surface – the primary design objective for this hybrid brush.

Filament Arrangement Customization:

Different filament combinations can be tailored to specific applications. The arrangement pattern – alternating rows, concentric rings, or segmented zones – affects how the two materials interact with the workpiece surface. Our engineering team works with customers to determine the optimal pattern for their specific deburring and roughness requirements.

Design Note for Concave Workpieces:

The center protrusion shown in the customer-customized image is specifically designed for workpieces with concave features. When the workpiece center is recessed, a flat brush cannot contact the recessed area. The raised center section ensures full surface contact, allowing the brush to reach and finish the entire workpiece surface including recessed areas.

Performance Limitations:

This brush is optimized for uniform roughness and deburring, not mirror finishing. It is intended for applications requiring consistent surface texture and burr removal prior to final polishing or as a final finish where mirror appearance is not required.

Hybrid Brush vs. Single Filament Disc Brush

Key Applications in Detail

Concave Workpiece Finishing
When the workpiece center is recessed, standard flat brushes cannot reach the recessed area. The custom center protrusion design ensures full surface contact, allowing the brush to finish the entire workpiece including recessed features. This configuration is engineered specifically for customer requirements where all areas must be brushed.

Uniform Surface Roughness Achievement
The mixed filament action creates consistent surface texture across the entire workpiece. Silicon carbide provides controlled abrasive cutting while stainless steel wire helps blend transitions, resulting in uniform overall roughness parameters.

Deburring with Roughness Control
Unlike aggressive brushes that may over-cut or softer brushes that lack deburring power, the hybrid design allows fine-tuning between deburring action and surface roughness maintenance. The mixed filaments work together to remove burrs while preserving target surface texture.

Customer-Customized Applications
Every hybrid brush can be tailored to specific requirements. Filament materials (SiC, AO, ceramic, steel wire), arrangement patterns, filament densities, and brush geometry are all customizable. The image shown represents one customer-specific configuration.

For Related Disc Brush Products

For abrasive nylon filament disc brushes, see our Resin Injection Disc Brush - Full Face Type and Resin Injection Disc Brush - Equal Divide Type.

For ceramic fiber precision finishing, explore Ceramic Fiber Disc Brush - Sleeve Type and Resin Injection Ceramic Fiber Disc Brush.

Related Products You May Need:

• For abrasive nylon filament disc finishing, see Resin Injection Disc Brush - Full Face Type

• For segmented abrasive disc finishing, check Resin Injection Disc Brush - Equal Divide Type

• For ceramic fiber precision finishing, explore Ceramic Fiber Disc Brush - Sleeve Type

• Browse the full Disc Brush Series

Why Choose Custom Hybrid Disc Brush?

For applications requiring uniform surface roughness with deburring capability, our custom hybrid disc brush delivers:

• Hybrid filament action – SiC abrasive + stainless steel wire in one brush

• Uniform roughness achievement – primary design goal for consistent surface texture

• Fine-tuned deburring – mixed materials balance cutting action and roughness control

• Fully customizable – filament types, arrangement patterns, densities, and geometry all tailored

• Resin injection molded base – secure filament anchoring with PP/PVC construction

• Concave workpiece capability – custom center protrusion for recessed areas

• Mirror finish note – optimized for uniform roughness, not mirror finishing

Customization Available
We offer complete customization of brush diameter, filament types (SiC abrasive, AO abrasive, ceramic abrasive, stainless steel wire, brass wire, or custom combinations), filament arrangement patterns (alternating rows, concentric rings, segmented zones), filament density, base geometry (flat, center protrusion, or custom profile), and mounting configuration to match your specific surface roughness and deburring requirements. Contact us with your application specifications for engineering recommendations.
