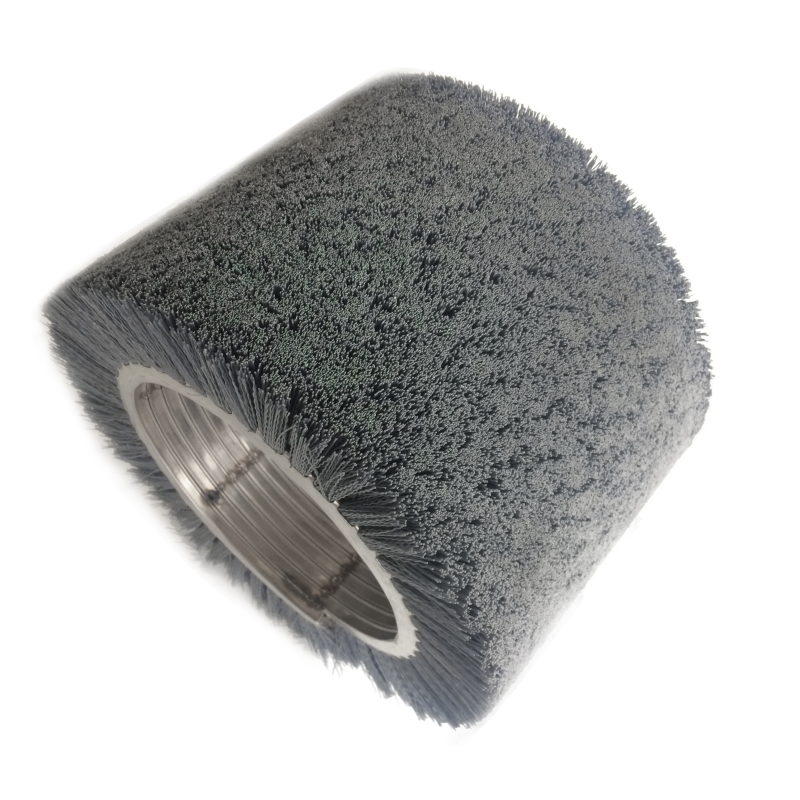

Silicon Carbide Abrasive Filament Roller Brush | Large Surface Deburring and Cleaning for Steel Plates

Product Name:
Silicon Carbide Abrasive Filament Roller Brush

Product Size:
Customizable according to customer requirements – outer diameter, working width and core dimensions fully tailored

Material Composition:

• Filament Material: Silicon carbide (SiC) abrasive filament

• Handle/Core Material: Multiple options available – strip brush wound sleeve design for mounting on equipment shafts, or fixed shaft design with metal (carbon steel/stainless steel) or PP/PVC plastic core, customized according to customer requirements

Product Features:

• Silicon carbide abrasive performance – aggressive cutting action for deburring, descaling and surface finishing on ferrous metals and hard materials

• Wide and long filament working range – broader working width and extended filament length provide efficient coverage for large workpieces including steel plates, sheets and wood panels

• Multiple core configuration options – available as sleeve type (strip brush wound for mounting on existing shafts) or fixed shaft type with metal or plastic core

• Large workpiece capability – specifically designed for surface treatment of steel plates, large flat workpieces and panels

• Steel mill compatible – suitable for both acid pickling and alkaline washing line applications with appropriate filament material selection

• Customizable construction – core material, dimensions and mounting method tailored to customer equipment specifications

• Dual-sided processing capability – two brushes can be mounted opposite each other for simultaneous top and bottom surface treatment

• Long service life – durable abrasive filaments for continuous industrial operation

Applicable Scenarios:

• Large flat workpiece surface deburring – removing burrs from steel plates, sheets and large castings

• Steel plate descaling – stripping mill scale and oxidation from hot-rolled steel plates

• Steel plate cleaning – removing surface contaminants from flat steel workpieces

• Wood panel surface treatment – deburring and finishing large wood panels and engineered boards

• Steel mill pickling lines – acid pickling applications where SiC abrasive provides chemical resistance

• Steel mill alkaline washing lines – alkaline washing applications with compatible filament construction

• Surface preparation before coating – preparing large metal surfaces for painting, powder coating or further processing

• Sheet metal finishing – surface conditioning on various sheet materials

What Makes Silicon Carbide Abrasive Roller Brush Different?

Our Silicon Carbide Abrasive Filament Roller Brush is engineered for large-scale surface finishing applications. The wide working width and extended filament length provide efficient coverage for steel plates, large flat workpieces and wood panels. SiC abrasive delivers aggressive cutting action for deburring, descaling and surface conditioning on ferrous metals and hard materials.

Wide and Long Filament Working Range:

Unlike standard disc brushes with limited contact area, this roller brush features broad working width and extended filament length. This generous working range allows efficient coverage of large surface areas, reducing processing time and improving productivity for steel plate processing lines and panel finishing operations.

Multiple Core Configuration Options:

We offer two primary construction types based on your equipment requirements:

Core Material Options:

Silicon Carbide Abrasive Performance:

SiC abrasive provides high hardness and aggressive cutting action, making it effective for deburring ferrous metals, removing mill scale from hot-rolled steel and surface conditioning hard materials. For aluminum and softer alloy applications, consider our aluminum oxide roller brush options.

Chemical Bath Compatibility:

In steel mill environments, surface treatment often occurs within pickling or washing lines. Silicon carbide abrasive filaments offer good chemical resistance, making them suitable for both acid pickling and alkaline washing applications. For custom industrial brush solutions, see our custom industrial brushes manufacturing capabilities.

Abrasive Roller Brush vs. Standard Crimped Wire Roller Brush

Key Applications in Detail

Steel Plate Deburring and Descaling
Large steel plates require removal of mill scale, oxidation and burrs from cut edges before further processing. The SiC abrasive roller brush provides efficient coverage across the full plate width. For heavy rust removal applications, consider our industrial wire brushes.

Steel Mill Pickling and Washing Lines
In continuous pickling or alkaline washing lines, surface treatment brushes prepare steel strip or plate for further processing. Silicon carbide abrasive filaments offer the chemical resistance needed for these demanding environments. For pipe and tube internal cleaning, explore our industrial pipe cleaning brushes.

Wood Panel Surface Finishing
Large wood panels and engineered boards require deburring and surface refinement before coating or lamination. The wide roller brush provides consistent finishing across the entire panel surface. For sealing applications on machinery, see our sealing industrial brushes.

Dual-Sided Processing Capability
Two brushes can be mounted opposite each other with the workpiece passing between them, enabling simultaneous top and bottom surface treatment in a single pass – highly efficient for steel plate processing lines. For deburring applications on machined parts, see our deburring industrial brushes.

For Related Roller Brush and Abrasive Products

For general industrial roller brush applications, see our Roller Brush.

For aluminum oxide abrasive roller brushes for softer materials, explore our custom roller brush options.

For disc brush surface finishing on smaller parts, check Disc Brush Series.

For strip brushes for sealing and conveying, see Strip Brush.

Frequently Asked Questions (FAQ)

Q1: What is the difference between sleeve type and fixed shaft type construction?

A1: Sleeve type brushes are formed by winding strip brush material and are designed to slide onto your existing equipment shafts for easy installation and replacement. Fixed shaft type brushes come with an integrated metal or PP/PVC plastic shaft ready for direct mounting into your equipment bearings or holders.

Q2: Can this brush be used in wet environments like pickling lines?

A2: Yes, silicon carbide abrasive filaments offer good chemical resistance and can perform effectively in both acid pickling and alkaline washing lines. For wet applications, we recommend stainless steel or PP/PVC plastic core materials for additional corrosion protection.

Q3: What materials can be processed with this roller brush?

A3: This brush is ideal for ferrous metals including carbon steel, stainless steel and cast iron. It is also suitable for wood panels, engineered boards and some composite materials. For aluminum and other soft alloys, we recommend aluminum oxide abrasive roller brushes.

Q4: How do I determine the correct brush dimensions for my processing line?

A4: Please provide your line specifications including required working width, available shaft diameter (for sleeve type) or mounting centers (for fixed shaft type), workpiece thickness and desired surface finish. Our engineering team will recommend optimal dimensions.

Q5: Can two brushes be used together for dual-sided processing?

A5: Yes, two brushes can be mounted opposite each other with the workpiece passing between them. This configuration allows simultaneous top and bottom surface treatment in a single pass, significantly improving line productivity.
