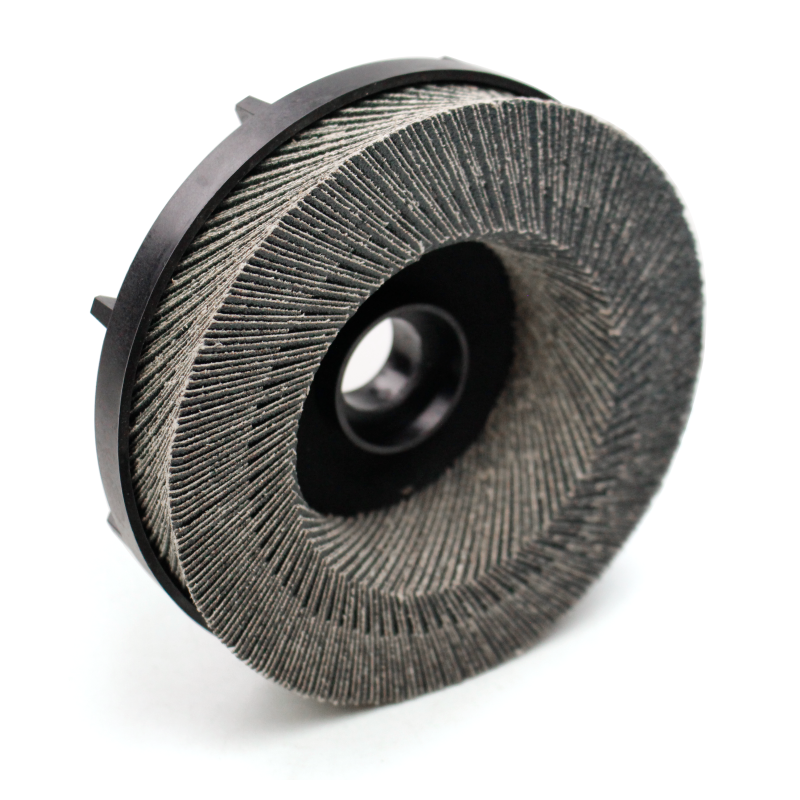

Tilted Laminated Abrasive Disc Brush:Non-Detachable Base for Contoured Deburring and Surface Finishing

Product Name:

Tilted Laminated Abrasive Disc Brush – Non-Detachable Base for Contoured Deburring and Surface Finishing

Product Size:

Customizable according to customer requirements – disc diameter, arbor hole size, and overall thickness fully tailored to match specific workpiece geometries and equipment specifications. Standard diameters available for angle grinders, CNC machines, and automated finishing systems.

Product Material Composition:

• Abrasive Material: Tilted laminated abrasive paper (sandpaper) sheets – multiple layers arranged in an inclined overlapping pattern. Abrasive grit types available include aluminum oxide, silicon carbide, or ceramic, selectable based on application requirements.

• Shank / Base Material: One-piece injection-molded plastic base – the base and brush body are permanently bonded as a single integrated unit using high-strength industrial adhesive. The base is non-detachable and non-replaceable, ensuring stable positioning accuracy and minimal vibration at high speeds.

Product Features and Applications:

Our Tilted Laminated Abrasive Disc Brush features a unique inclined laminated sandpaper sheet construction, where multiple abrasive paper layers are arranged in an overlapping tilted pattern and permanently bonded to a one-piece injection-molded plastic base. This design – also known as a laminated abrasive disc brush, flap-type disc brush, or bonded abrasive disc brush – provides excellent elastic buffering, superior surface conformity, and combined cutting and polishing capability in a single tool.

Core Advantages:

• Inclined Laminated Sheet Structure – sandpaper sheets are arranged in a tilted overlapping pattern, providing excellent elastic buffering and conformability to curved surfaces and irregular contours without over-cutting. Delivers uniform scratch patterns and consistent surface finish.

• High-Strength Bonding Process – specialized industrial adhesive securely bonds the abrasive paper layers, providing strong centrifugal force resistance at high speeds. Sandpaper sheets remain firmly attached, ensuring operational safety.

• One-Piece Non-Detachable Base – the base and brush body are permanently integrated as a single unit, providing high positioning accuracy and minimal vibration at high speeds. Suitable for continuous high-speed operation on automated equipment.

• Combined Cutting and Polishing Capability – the abrasive paper itself provides material removal capability, simultaneously deburring, removing flash, and performing surface texturing and finish refinement in a single pass.

• Superior Heat Dissipation and Chip Evacuation – gaps between individual sandpaper sheets allow grinding debris and heat to dissipate rapidly, reducing the risk of workpiece discoloration and overheating.

Application Fields:

• Aluminum and Zinc Die-Castings – parting line removal, gate flash grinding, contour deburring, and surface polishing on curved profiles

• Stamping and Sheet Metal – sheet metal edge chamfering, burr removal, surface brushing, and minor scratch elimination

• 3C Hardware and Precision Components – contour grinding of aluminum alloy housings and die-cast parts, edge burr cleaning

• Automotive Parts – contour deburring of die-cast aluminum and stamped parts, surface texture refinement

• Automated CNC and Robotic Finishing – compatible with machining centers and robotic spindles for flexible, high-volume finishing of irregular workpieces

• Furniture and Bathroom Hardware – surface finishing and machining mark removal on stainless steel and aluminum alloy components

Comparison – Tilted Laminated vs. Standard Abrasive Disc Brush:

Frequently Asked Questions (FAQ)

Q1: What is the advantage of the tilted laminated sheet structure?
The inclined overlapping arrangement provides excellent elastic buffering and conformity to curved surfaces and irregular contours. Unlike rigid disc brushes, the tilted sheets flex to match workpiece profiles, delivering uniform scratch patterns without over-cutting or gouging.

Q2: What is the difference between this brush and a standard flap disc (千叶轮)?
While both use laminated abrasive sheets, this disc brush features a tilted overlapping arrangement with elastic buffering, providing better conformity to curved and irregular surfaces. The one-piece non-detachable base ensures stable positioning and minimal vibration at high speeds, making it suitable for automated CNC and robotic applications.

Q3: What abrasive grit types are available?
We offer aluminum oxide for general-purpose metal finishing, silicon carbide for ferrous metals and aggressive cutting, and ceramic for maximum durability and heat resistance. Grit sizes range from coarse for heavy material removal to fine for polishing and surface refinement.

Q4: Can this brush be used on curved or irregular surfaces?
Yes. The tilted laminated sheet structure provides excellent conformity to curved surfaces, irregular contours, and complex profiles. The elastic buffering action allows the brush to follow workpiece contours without over-cutting, making it ideal for die-cast parts, stamped components, and irregular workpieces.

Q5: What is the recommended operating speed and technique?
Recommended speed depends on disc diameter and application. Typical speeds range from 1,500–3,000 min⁻¹ for most applications. Always start at lower speeds and increase gradually. The flexible sheet structure allows the brush to conform to workpiece contours – use light to moderate pressure for optimal results.

Ready to Improve Your Contoured Deburring and Surface Finishing Operations?

Our tilted laminated abrasive disc brushes combine the cutting power of abrasive paper with the conformability of tilted sheet construction and the stability of a one-piece non-detachable base. Available with customizable disc diameters, arbor hole sizes, abrasive grit types, and thickness configurations to match your specific deburring, polishing, and surface finishing requirements.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications for a prompt engineering review.
