Encapsulated Crimped Wire End Brush:Zero Filament Shedding for Contamination-Free Cleaning and Deburring

1、Product Name:

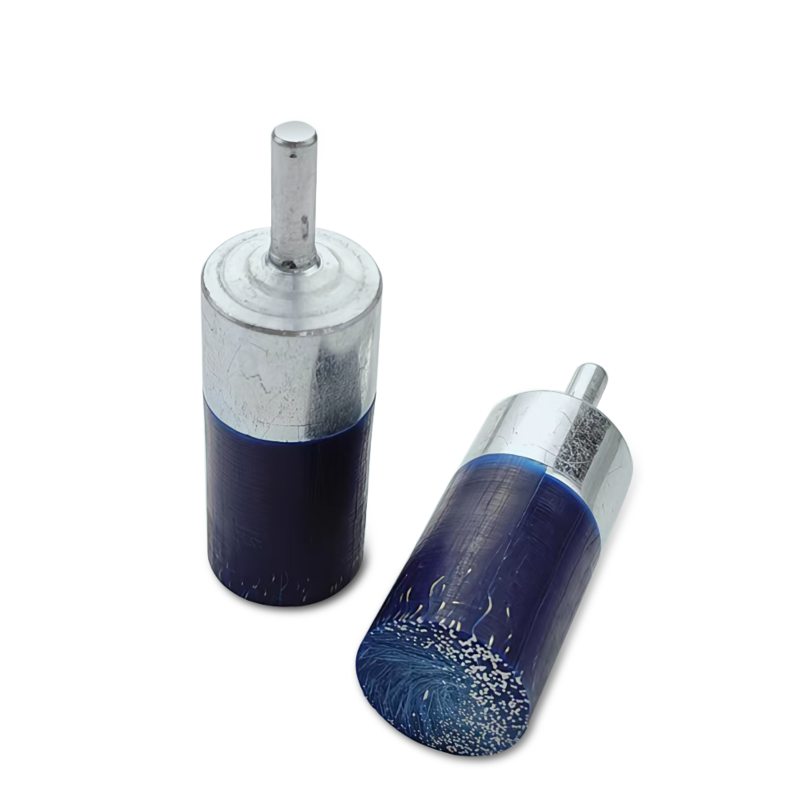

Encapsulated Crimped Wire End Brush – Zero Filament Shedding for Contamination-Free Cleaning and Deburring

2、Product Size:

Customizable according to customer requirements – brush diameter, trim length, and shank size fully tailored. Standard and custom dimensions available to match your specific application requirements.

Refference Drawing:

Standard Series:

3、Product Material Composition:

• Filament Material: Crimped copper plated steel wire or carbon steel wire – fully encapsulated in PVC/PP/thermoplastic resin, leaving only the working tip exposed. Available in copper plated steel or carbon steel options based on application requirements

• Shank Material: Steel shank for secure mounting in power tools, drill chucks, and CNC tool holders

4、Product Features and Applications:

Our Encapsulated Crimped Wire End Brush features a unique construction where a bundle of crimped steel wire filaments is fully encapsulated in PVC/PP/thermoplastic resin, with only the working tips exposed. The entire side wall and filament base are completely sealed, with no exposed wire.

Key Features:

• Zero Filament Shedding – complete encapsulation prevents loose wires, metallic debris, and free filament fragments from contaminating workpieces or assemblies

• Non-Marring Surface Protection – insulation of outer walls prevents scratching and damage to workpiece bores, outer diameters, and mating surfaces

• Chemical and Coolant Resistance – encapsulation protects filaments from corrosion, cutting fluids, and cleaning solutions

• Dust and Contaminant Sealing – prevents oil, dirt, and debris from migrating along filaments toward the shank

• Controlled Aggressive Action – encapsulation supports filaments, minimizing flexibility while allowing only tips to engage the workpiece, providing precise brushing action

• Flexible Crimped Wire Core – crimped steel wire maintains moderate flexibility within the encapsulated matrix

• Extended Service Life – elastomer wears back gradually, exposing consistent short trim for maximum aggression and long life

Application Fields:

• Hydraulic and Pneumatic Systems – cleaning valve bodies, manifold passages, and precision bores without contamination

• Automotive Parts Manufacturing and Maintenance – cleaning engine components, transmission housings, and brake system bores

• Injection Molding and Die Casting – cleaning water lines, cooling channels, and hot runner systems

• Precision Machining and CNC – deburring and cleaning machined parts and non-standard components

• Compressor and Refrigeration Equipment – internal bore cleaning during manufacturing and maintenance

• Fluid Power and Seal Component Manufacturing – cleaning precision fittings and seal surfaces

• Heavy Equipment and Marine – cleaning precision oil passages and hydraulic circuits

Frequently Asked Questions (FAQ)

Q1: What is the advantage of encapsulation in wire end brushes?
Encapsulation bonds filaments in a synthetic elastomer that supports individual wires, preventing flexing and breakage while providing consistent short trim for maximum cutting action. The elastomer wears back gradually, exposing fresh wire tips for extended service life . This results in more aggressive brushing action than standard crimped wire brushes.

Q2: What is the difference between encapsulated and standard crimped wire end brushes?
Encapsulated brushes have filaments bonded in resin, allowing only the working tips to engage the workpiece. This reduces flexibility, increases aggression, and prevents wire breakage and filament shedding . Standard crimped brushes have exposed filaments with more flexibility but higher risk of wire breakage and shedding.

Q3: Can this brush be used in coolant-flooded or wet applications?
Yes, the resin encapsulation provides excellent resistance to cutting fluids, coolants, and cleaning solutions. The sealing prevents oil and contaminants from migrating along filaments toward the shank, making it ideal for wet processing environments. However, avoid temperatures above 180°F (82°C) as the encapsulation may soften .

Q4: What operating speed should I use for this brush?
For optimal performance and safety, operate within the recommended speed range. Typical maximum RPM is 15,000-20,000 for smaller diameters, with optimum performance at 7,500-11,200 RPM depending on brush diameter and material . Always start at lower speeds and increase gradually. Use a power tool with a minimum output of 300 watts .

Q5: Can this brush be used for heavy rust removal or weld spatter cleaning?
Encapsulated brushes provide aggressive cutting action ideal for heavy deburring, surface blending, descaling, paint stripping, weld cleaning, and root seam processing . However, they are most effective on relatively flat surfaces where a controlled brushing surface is required . For extreme heavy-duty weld spatter removal, a twisted knot brush may be more suitable.

Ready to Improve Your Contamination-Sensitive Cleaning and Deburring Operations?

Our encapsulated crimped wire end brushes are available with customizable diameters, trim lengths, and shank configurations. Choose from copper plated steel or carbon steel wire options, with full resin encapsulation for zero filament shedding and maximum contamination prevention.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications for a prompt engineering review.

Browse our full End Brush Series for additional deburring and cleaning solutions, or explore our custom industrial brushes for other specialized requirements.
