Diamond Ring Cluster Disc Brush
LONGGUANG currently has more than 3,000 industrial brush products, covering all industries such as auto parts, mechanical parts, hydraulic parts, etc. Our products are widely used in the polishing, de-rusting, and deburring of metal parts processing; metal sheet, strip cleaning, grinding, descaling; finishing of textile, printing, and dyeing leather products, sanding; dust removal, grinding and coating of paper and artificial boards Glue; cleaning, polishing, deburring of circuit boards; cleaning of glass and LCD substrates; cleaning and descaling of pipes; sealing and dust proofing of furniture, storage, and machinery.
Couldn't load pickup availability
Model: Customized as your request
Product Origin: Shanghai, China
Shipping Port: Shanghai Port, China
Payment: TT
Lead Time: 15-30 days after receiving your deposit
Product Overview

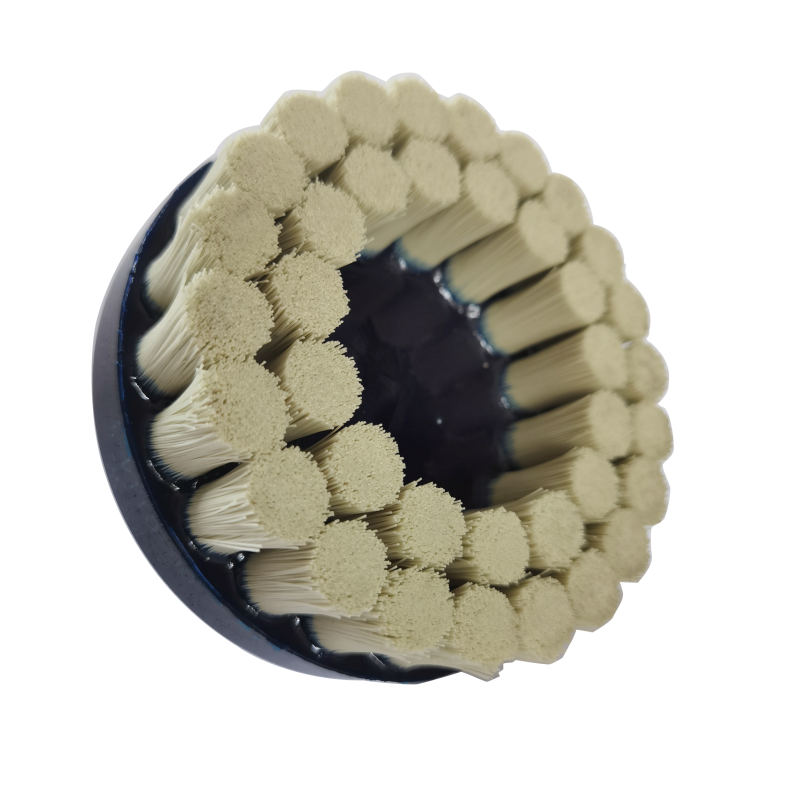

Our diamond ring cluster disc brush is manufactured from diamond abrasive nylon (cream) and engineered for precision cnc deburring, with key advantages including ring-shaped cluster structure with hollow center, diamond abrasive filament performance and shank-mounted design.
Also known as custom diamond ring cluster disc brush, industrial disc brush or disc brush for precision cnc deburring.
Specifications and Custom Sizes
Diamond Disc Brush Specifications
Customizable according to customer requirements – disc diameter, center hole size, cluster configuration, and shank specifications fully tailored to match specific workpiece geometries and equipment requirements. Standard straight steel shank for direct collet mounting in CNC machining centers, robotic spindles, and power tools.
Material Composition
This brush is built from 2 material groups – the diamond abrasive nylon filament and steel straight shank:
- Filament Material: Diamond abrasive nylon filament – ultra-high hardness abrasive grit embedded throughout Nylon 6.12 filaments . Diamond provides superior cutting power on the hardest materials, with significantly longer wear life than silicon carbide or aluminum oxide abrasives .
- Shank / Base Material: Steel straight shank with ring-shaped cluster construction – hollow center design with filaments arranged in distinct point-cluster ring configuration. Standard cylindrical shank for direct mounting in CNC spindles, robotic arms, and handheld tools.
Features and Applications
Diamond Cup Grinding Disc
Our Ring-Type Cluster Diamond Abrasive Filament Disc Brush features a unique hollow-center cluster ring design where diamond abrasive filament tufts are independently anchored in a circular pattern. This configuration – also known as a diamond cluster mounted end brush or ring-type cluster diamond abrasive disc brush – combines the extreme cutting power of diamond abrasive with the chip-evacuation benefits of cluster construction and the convenience of direct shank mounting .
Core Advantages:
- Ring-Shaped Cluster Structure with Hollow Center – filaments grouped into distinct clusters with gaps between each cluster for superior chip evacuation and heat dissipation . The hollow center reduces friction area and minimizes heat accumulation, supporting extended continuous automated processing.
- Diamond Abrasive Filament Performance – diamond provides the highest hardness among all abrasives, delivering exceptional cutting power on hard-to-machine materials . Diamond abrasive filaments maintain cutting effectiveness significantly longer than silicon carbide or aluminum oxide, with wear life far exceeding conventional abrasives .
- Shank-Mounted Design – standard steel straight shank allows direct collet mounting in CNC machining centers, robotic spindles, and power tools. No additional flange adapters required, suitable for confined workstations and automated tool changers.
- Cluster Elastic Buffering – independent cluster tufts provide elastic compliance, adapting to slight surface irregularities, stepped features, and cross-hole intersections. Effectively prevents over-cutting and workpiece gouging while delivering uniform edge radiusing.
- Secure Filament Retention – each filament tuft is independently anchored, preventing filament loss even during high-speed rotation. Consistent wear pattern with balanced load distribution for predictable service life.
- Superior Size Stability – diamond abrasive particles are securely held within the nylon matrix, providing excellent dimensional stability for high-precision, high-volume production .
Diamond vs. Silicon Carbide / Aluminum Oxide:
| Feature | Diamond Abrasive (This Product) | SiC / AO Abrasive |
|---|---|---|
| Hardness | Highest | Moderate to high |
| Cutting efficiency on hard materials | Superior | Limited |
| Wear life | Extended (far exceeds conventional) | Standard |
| Best for | Tungsten carbide, ceramics, superalloys | General metals, aluminum, steel |
| Material compatibility | Hardened tool steels, CBN, glass, ceramic | Ferrous and non-ferrous metals |
Application Limitations:
- Not suitable for soft materials such as pure copper or ultra-thin zinc alloys
- Higher cost than silicon carbide or aluminum oxide abrasive brushes; value justified by superior efficiency and extended service life on demanding applications
Disc Brush for Precision CNC Deburring
Cemented Carbide and Ceramic Processing:
- Tungsten carbide parts, engineering ceramics, silicon nitride, and zirconia components – deburring, edge radiusing, and machining mark removal
- Indexable cutting tool inserts and carbide cutting tool honing
Graphite and Carbon Fiber Composites:
- Graphite electrodes and carbon fiber reinforced composite components – machining flash removal and parting line burr cleaning without excessive edge chipping
Semiconductor and Precision Ceramic Components:
- Ceramic substrates, insulating ceramic parts – precision removal of sharp edges and micro-burrs from machined surfaces
Aerospace Superalloys:
- Inconel, Hastelloy, and other high-temperature alloy components – hole entry and end face burr removal on difficult-to-machine materials
Mold and Die Industry:
- Hardened tool steel molds and ceramic molds – micro-burr removal after EDM and milling operations
Automated Precision Deburring Cells:
- CNC machining centers and robotic deburring systems – high-volume precision deburring and light chamfering of high-hardness workpieces
Frequently Asked Questions (FAQ)
Q1: Why choose diamond abrasive over silicon carbide or aluminum oxide?
Diamond provides the highest hardness among all abrasives, delivering superior cutting efficiency on hard materials including tungsten carbide, ceramics, glass, and superalloys . Diamond abrasive filaments offer significantly longer wear life than conventional abrasives, making them the preferred medium for honing carbide cutting tools and finishing hard metals . While the initial cost is higher, diamond delivers lower cost per part in demanding applications.
Q2: What is the advantage of the ring-shaped cluster design?
The ring-shaped cluster design provides three key benefits: (1) gaps between clusters allow superior chip evacuation and heat dissipation, reducing heat buildup during continuous operation ; (2) the hollow center accommodates raised workpiece features that cannot pass through a solid disc brush; and (3) cluster tufts provide elastic compliance, adapting to surface irregularities without over-cutting or damaging the workpiece.
Q3: What materials can this brush effectively process?
This brush is ideal for superhard materials including tungsten carbide, cemented carbide, ceramics, silicon nitride, zirconia, graphite, carbon fiber composites, hardened tool steels (HRC 55+), superalloys (Inconel, Hastelloy), and glass . For soft metals such as aluminum, copper, or zinc alloys, we recommend aluminum oxide or silicon carbide abrasive brushes instead.
Q4: Is this brush suitable for automated CNC and robotic applications?
Yes. The standard steel straight shank allows direct collet mounting in CNC machining centers, robotic spindles, and power tools . The brush can be used in automated tool changers, enabling deburring and finishing operations immediately after machining in the same setup. The consistent wear characteristics and dimensional stability make it ideal for high-volume automated production.
Q5: What is the recommended operating speed and technique?
Recommended operating speed depends on brush diameter and application. For diamond abrasive brushes, typical speeds range from 1,500–3,000 min⁻¹. Always start at lower speeds and increase gradually. Coolants and lubricants are recommended for continuous operation and extended service life. When deburring, only the filament tips should contact the workpiece – excessive pressure does not improve results but may reduce brush life and damage the workpiece.
Ready to Automate Your Hard Material Deburring and Finishing Operations?
Our ring-type cluster diamond abrasive filament disc brushes combine the extreme cutting power of diamond abrasive with the chip-evacuation benefits of ring-shaped cluster design and the convenience of direct shank mounting. Available with customizable disc diameters, center hole sizes, cluster configurations, and shank specifications to match your specific hard alloy, ceramic, and superalloy deburring requirements.
Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications for a prompt engineering review.
Browse our full Disc Brush Series for additional surface finishing solutions, or explore our custom industrial brushes for other specialized requirements.
