Product Name:

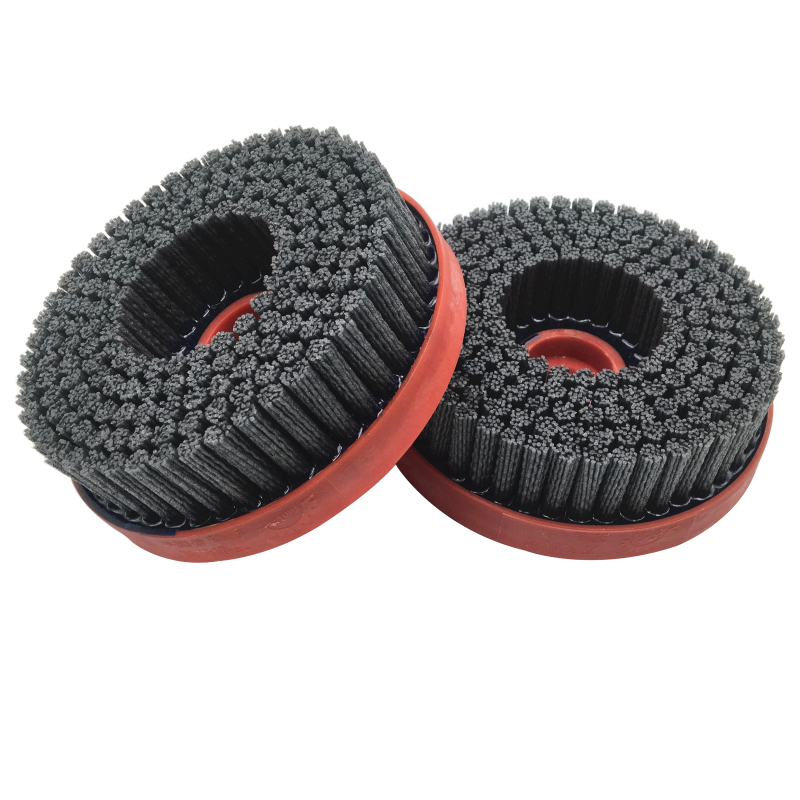

Ring-Type Cluster Silicon Carbide Abrasive Filament Disc Brush – Flange-Mounted High-Volume Deburring for Large Flat Surfaces
Product Size:
Customizable according to customer requirements – disc diameter, center hole size, cluster configuration, and flange mounting specifications fully tailored to match specific workpiece geometries and equipment requirements. Standard flange mount fits common deburring machines, CNC machining centers, robotic spindles, and angle grinders.
Product Material Composition:
-
Filament Material: Silicon carbide (SiC) abrasive nylon filament – high hardness with aggressive cutting power for efficient deburring, rust removal, and oxide scale stripping. Nylon bristles contain a very high proportion of silicon carbide grit for general-purpose use.
-
Shank / Base Material: Red plastic (PP/PVC) ring-shaped base with center mounting hole – flange lock mounting design for direct attachment to angle grinders, machine tool flanges, and automated grinding spindles. No straight shank; flange-secured installation.
Product Features and Applications:
Our Ring-Type Cluster Silicon Carbide Abrasive Filament Disc Brush features a segmented cluster ring arrangement where individual filament tufts are independently anchored in a circular pattern around a hollow center. The ring-shaped design with center hole is specifically engineered to accommodate workpieces with raised center features or protruding elements. This design – also known as a flange-mounted cluster disc brush, ring-type cluster abrasive disc brush, or segmented cluster face brush – provides superior chip evacuation, enhanced heat dissipation, and extended service life compared to solid-face disc designs.
Core Advantages:
-
Ring-Shaped Cluster Structure – filaments are grouped into distinct clusters with gaps between each cluster, allowing machining chips and heat to escape rapidly. The hollow center reduces friction area, minimizing overall contact heat generation and preventing filament burning during continuous operation.
-
Aggressive Silicon Carbide Cutting Power – SiC abrasive filaments deliver high hardness, sharp cutting edges, and excellent wear resistance. Highly effective for removing burrs, oxide scale, and parting lines from cast iron, aluminum alloys, die-cast alloys, and hard non-metals.
-
Secure Cluster Anchoring – each filament tuft is independently anchored, preventing filament loss even during high-speed rotation. Cluster tufts provide elastic compliance, adapting to slight surface irregularities without over-cutting or damaging the workpiece base material.
-
Flange Mount – Large Working Surface – flange-secured installation provides a large effective working diameter, ideal for high-volume processing of large flat surfaces, flange faces, and planar workpieces. Compatible with CNC machines, robotic arms, and handheld grinding equipment, supporting both automated production lines and manual workstations.
-
Uniform Wear and Easy Maintenance – ring-shaped cluster arrangement ensures balanced load distribution and consistent filament wear. Localized cluster wear does not compromise overall brush performance, delivering longer service life than solid-cast disc brushes.
Application Fields:
Automotive Parts Manufacturing:
-
Engine cylinder heads, flange faces, and large die-cast surfaces – parting line flash removal, gate mark cleaning, and milling mark elimination
-
Transmission housings and compressor components – large flat surface deburring and conditioning
Hydraulic Valve Body and Pump Industry:
-
Large valve block end faces and flange end faces – sharp edge radiusing and machining burr removal
-
Pump housing and manifold surface finishing
Die-Casting Industry:
-
Aluminum and zinc die-cast parts – large-area surface deburring, oxide scale removal, and parting line flash cleaning
-
Post-casting surface conditioning and flash removal
General CNC Machining:
-
Cast iron and carbon steel workpieces – flat surface and stepped surface grinding, milling and stamping flash removal
Automated Robotic Finishing:
-
Robotic flange mounting – high-volume batch processing of large workpieces, end faces, flanges, and housing surfaces
-
Automated deburring cells and CNC machining centers
Hardware and Castings:
-
Casting surface burr removal and light oxide layer cleaning
-
General surface conditioning of metal components
Comparison – Ring-Type Cluster vs. Shank-Mounted Cluster Brush:
| Feature | Ring-Type Cluster (This Product) | Shank-Mounted Cluster Brush |
|---|---|---|
| Mounting | Flange lock – large working surface | Direct shank – smaller footprint |
| Processing area | Large – ideal for large flat surfaces | Smaller – suitable for small workpieces |
| Best for | High-volume batch processing of large parts | Small workpieces, confined workstations |
Frequently Asked Questions (FAQ)
Q1: What is the advantage of the ring-shaped cluster design over solid-face disc brushes?
The ring-shaped cluster design provides gaps between individual filament tufts for superior chip evacuation and heat dissipation, preventing workpiece burning and filament damage during continuous high-speed operation. The hollow center reduces friction area, minimizing overall heat generation. Additionally, localized cluster wear does not render the entire brush unusable – remaining clusters continue to function effectively, extending overall service life.
Q2: Why choose silicon carbide (SiC) abrasive over aluminum oxide?
Silicon carbide provides higher hardness and sharper cutting edges than aluminum oxide, delivering more aggressive cutting power for heavy burr removal, rust stripping, and oxide scale elimination. SiC is the preferred choice for ferrous metals, castings, and applications requiring maximum material removal. For aluminum and soft alloy applications, we recommend our aluminum oxide ring-shaped cluster disc brush.
Q3: How does flange mounting differ from shank mounting?
Flange mounting provides a larger effective working surface and is ideal for high-volume processing of large flat workpieces, flange faces, and planar surfaces. Shank mounting is better suited for small workpieces and confined workstations. The flange mount fits standard deburring machines and heads such as Costa, Timesavers, Weber, Lissmac, Q-Fin, ARKU, and Loewer.
Q4: What is the recommended operating speed and feed rate for this brush?
Recommended speed is typically 1,800–2,200 min⁻¹ with maximum speed up to 4,000 min⁻¹. Feed rate should be 800–3,000 mm/min with infeed of 0.3mm (fine) to 1.0mm (coarse). Always start at lower speeds and increase gradually. Coolants and lubricants are recommended for higher speeds and continuous operation.
Q5: What materials can this brush effectively process?
Silicon carbide disc brushes are suitable for aluminum-magnesium alloys, copper-zinc alloys (brass), steel with tensile strength < 900 N/mm², gray cast iron (conditionally), and titanium alloys (conditionally). The brush is effective for deburring, edge rounding, surface finishing, and removal of laser/plasma slag, oxide, and scale.
Ready to Automate Your High-Volume Large Surface Deburring Operations?
Our ring-type cluster silicon carbide abrasive filament disc brushes combine aggressive SiC cutting power with the chip-evacuation benefits of ring-shaped cluster design and the large working surface of flange mounting. Available with customizable disc diameters, center hole sizes, cluster configurations, and flange specifications to match your specific CNC deburring, surface conditioning, and high-volume batch processing requirements.
Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications for a prompt engineering review.
Browse our full Disc Brush Series for additional surface finishing solutions, or explore our custom industrial brushes for other specialized requirements.
