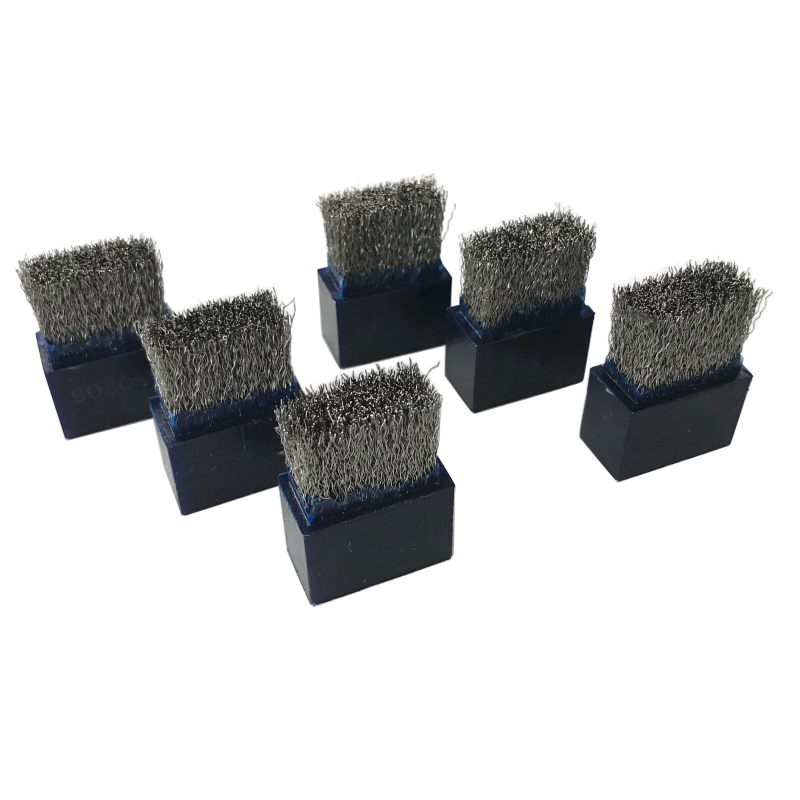

Replaceable Stainless Steel Square Brush Blocks:Modular Wire Brush Segments for Disc and Roller Brush Assemblies

Product Name:

Replaceable Stainless Steel Square Brush Blocks – Modular Wire Brush Segments for Disc and Roller Brush Assemblies

Product Size:

Customizable according to customer requirements – block dimensions, filament trim length, wire diameter, and base configuration fully tailored to match specific brush assembly specifications and application requirements.

Product Material Composition:

• Filament Material: Stainless steel crimped wire (corrosion-resistant, high strength, excellent toughness). Crimped wave-shaped construction provides flexible buffering action and effective surface contact.

• Shank / Base Material: Square plastic (PP/PVC) base with securely anchored filament tufts – modular design for easy installation into disc brush holders, roller brush assemblies, and automated equipment. Block dimensions and filament density customizable.

Product Features and Applications:

Our Replaceable Stainless Steel Square Brush Blocks feature a modular square-base design with securely anchored stainless steel crimped wire filaments. These individual brush blocks can be assembled into disc brush holders, roller brush bases, and automated equipment to create custom brush assemblies of any required size. The modular design allows selective replacement of worn blocks without discarding the entire brush assembly.

Core Advantages:

• Modular Replaceable Design – individual brush blocks can be replaced when worn without discarding the entire brush assembly, significantly reducing consumable costs and minimizing downtime.

• Secure Filament Anchoring – stainless steel wires are firmly embedded in the square plastic base, preventing filament loss or loosening even at high rotational speeds.

• Stainless Steel Crimped Wire Performance – corrosion-resistant construction suitable for wet and humid processing conditions. Crimped wave-shaped filaments provide excellent elasticity and buffering action, conforming to workpiece surfaces without gouging.

• Flexible Assembly Configuration – multiple blocks can be freely arranged to adjust brush density, coverage area, and gap spacing, adapting to different disc diameters, roller widths, and automated equipment requirements.

• Superior Heat Dissipation and Chip Evacuation – gaps between individual blocks allow heat and metal debris to escape rapidly, preventing workpiece overheating and filament damage during continuous operation.

• Quick Installation and Replacement – standardized square base design fits into compatible holder slots for fast tool-free mounting and replacement.

• Corrosion Resistance – stainless steel construction makes these brush blocks suitable for wet grinding and coolant applications where carbon steel would rust.

Application Fields:

• Stamping and Sheet Metal Industry – sheet metal edge deburring, stamping flash removal, and surface oxide layer cleaning

• Welding and Fabrication – weld spatter removal, weld seam oxide layer cleaning, and post-weld surface conditioning

• Castings and Forgings – parting line burr removal, surface sand residue cleaning, and heat treatment oxide scale stripping

• Automated Deburring Equipment – assembly into disc brush holders and roller brush bases for CNC machining centers and robotic deburring workstations

• Steel Structure and Hardware – rust removal from carbon steel workpieces, old coating stripping, and general surface cleaning

• Industrial Maintenance – general-purpose surface preparation and cleaning in fabrication shops and maintenance facilities

Brush Block vs. One-Piece Brush Comparison:

Frequently Asked Questions (FAQ)

Q1: What is the advantage of modular brush blocks over traditional one-piece brushes?
Modular brush blocks allow individual replacement of worn sections without discarding the entire brush assembly. This significantly reduces consumable costs and minimizes downtime, as only damaged blocks need to be replaced rather than the full disc or roller brush.

Q2: What wire materials are available for these brush blocks?
Stainless steel wire is the standard option, providing excellent corrosion resistance for wet and humid processing conditions. Additional wire materials including carbon steel wire, brass wire, and abrasive nylon filaments are also available upon request.

Q3: How are the brush blocks assembled into a complete brush?
The square blocks feature a standardized base design that fits into compatible disc brush holders or roller brush assemblies. Multiple blocks can be arranged in any configuration – adjusting block count, gap spacing, and coverage area to match specific equipment and workpiece requirements.

Q4: What is the advantage of crimped wire construction?
Crimped wire features a wave-shaped (crimped) configuration that provides excellent flexibility and buffering action. This allows the filaments to conform to workpiece surfaces without gouging, delivering more controlled cleaning and deburring action compared to rigid straight-wire brushes.

Q5: Can these brush blocks be used in automated CNC and robotic applications?
Yes. The modular square blocks are designed for integration into disc brush holders and roller brush assemblies used in CNC machining centers, robotic deburring cells, and automated finishing systems. The quick replacement design minimizes downtime in high-volume production environments.

Ready to Reduce Your Brush Replacement Costs and Downtime?

Our replaceable stainless steel square brush blocks offer modular flexibility, cost-effective partial replacement, and durable stainless steel wire performance. Available with customizable block dimensions, wire diameters, filament densities, and base configurations to match your specific disc brush, roller brush, and automated deburring requirements.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your assembly specifications, application details, and workpiece material for a prompt engineering review.

Browse our full Disc Brush Series for additional surface finishing solutions, or explore our custom industrial brushes for other specialized requirements.
