Special-Shaped Ring Stainless Steel Wire Flange Disc Brush:Petal Contour Design for Interference-Free Edge Deburring and Weld Cleaning

Product Name:

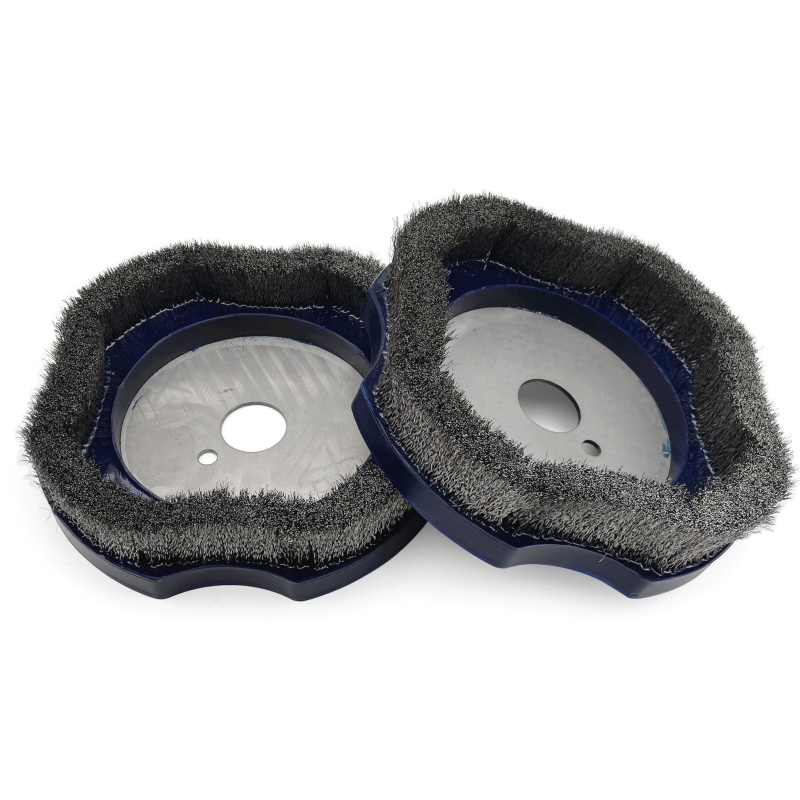

Special-Shaped Ring Stainless Steel Wire Flange Disc Brush – Petal Contour Design for Interference-Free Edge Deburring and Weld Cleaning

Product Size:

Customizable according to customer requirements – disc diameter, petal contour geometry, center hole size, and overall dimensions fully tailored to match specific workpiece contours and equipment specifications.

Product Material Composition:

• Filament Material: Stainless steel wire – high strength, excellent toughness, and corrosion resistance. Provides effective deburring, weld cleaning, and surface conditioning without rust contamination. Suitable for wet, humid, and moisture-prone processing conditions.

• Shank / Base Material: Special-shaped petal (scalloped) flange base with center mounting hole – non-circular contour design. Plastic/metal composite base with high rigidity and secure filament anchoring. Flange lock mounting for direct attachment to angle grinders, machine tool flanges, and automated grinding spindles. No straight shank.

Product Features and Applications:

Our Special-Shaped Ring Stainless Steel Wire Flange Disc Brush features a unique petal-shaped (scalloped) flange base with stainless steel wire filaments arranged in a complete outer ring configuration. The non-circular petal contour – also known as a flower-shaped or scalloped stainless steel wire disc brush – is specifically engineered to address the common problem of disc brush interference with workpiece center protrusions, fixtures, and raised features.

Core Advantages:

• Petal-Shaped Base Design – Interference-Free Operation – the non-circular scalloped contour allows the brush to navigate around workpiece protrusions, fixtures, and raised center features. Effectively accesses stepped surfaces, flanges, and confined areas where standard round disc brushes would interfere.

• Stainless Steel Wire Performance – high strength and impact resistance with aggressive cutting power. Corrosion-resistant properties make it ideal for wet, humid, and moisture-prone processing conditions. Will not rust or leave iron contamination on workpieces. Effective for removing thick flash, weld spatter, oxide scale, and rust layers.

• Full-Ring Outer Filament Layout – filaments concentrated on the outer circumference for maximum linear speed and high removal efficiency. The hollow center area provides clearance for workpiece center protrusions, specifically engineered for processing workpiece outer edges and flange outer ring surfaces.

• Flange-Mounted Installation – compatible with angle grinders, machine tool spindles, and robotic arms. Secure flange lock mounting ensures stable dynamic balance at high speeds. Suitable for large-surface, high-volume automated grinding and handheld applications.

• Rigid Composite Base – plastic/metal composite construction with high strength and deformation resistance. Filaments securely anchored with minimal wire loss during operation.

Application Fields:

Sheet Metal and Welding Industry:

• Stainless steel weldment outer ring weld seam cleaning – removing weld slag, weld discoloration, and weld seam oxidation. The petal base design avoids weld seam inner protrusions, processing only the outer edge.

Flange and Pipe Fitting Processing:

• Stainless steel flange outer ring edge deburring and heat treatment oxide scale removal. The base design provides clearance for flange center protrusions.

Steel Structure and Stampings:

• Carbon steel and stainless steel stamped parts – outer edge thick flash removal and sheet edge rust elimination.

Automotive Chassis Components:

• Stainless steel and steel stamped chassis parts – outer edge burr and surface rust removal.

Robotic Automated Grinding:

• Flange mounting for robotic spindles – high-volume batch processing of outer ring edges on workpieces with raised center features.

Wet and Water-Cooled Processing:

• Stainless steel wire construction prevents rust in coolant and water-based grinding applications.

Comparison – Petal-Shaped vs. Standard Round Disc Brush:

Feature	Petal-Shaped (This Product)	Standard Round Disc Brush
Base shape	Non-circular petal contour	Round
Workpiece access	Clearance for protrusions, fixtures	Limited – may interfere
Best for	Workpiece outer edges, flanges	General flat surfaces
Center clearance	Yes – hollow center	Limited
Interference risk	Minimal	Moderate to high

Frequently Asked Questions (FAQ)

Q1: What is the advantage of the petal-shaped (scalloped) base design?
The non-circular petal contour provides clearance around workpiece protrusions, fixtures, and raised center features. This allows the brush to access workpiece outer edges, flange perimeters, and stepped surfaces without interference – addressing the common problem where standard round disc brushes cannot process around center protrusions.

Q2: Why choose stainless steel wire over carbon steel wire for this disc brush?
Stainless steel wire provides excellent corrosion resistance, making it suitable for wet, humid, and moisture-prone processing conditions. Unlike carbon steel wire, stainless steel will not rust or leave iron contamination on workpieces. This is particularly important when processing stainless steel, aluminum, and other corrosion-sensitive alloys where contamination could cause future corrosion.

Q3: How does the full-ring outer filament layout benefit operation?
Filaments concentrated on the outer circumference deliver maximum linear speed and high removal efficiency on workpiece outer edges. The hollow center area provides clearance for workpiece center protrusions, making this brush ideal for applications where only the outer ring of the workpiece requires processing.

Q4: What is the recommended operating speed for this brush?
Recommended speed depends on brush diameter. Typical speeds range from 1,500–3,000 min⁻¹ for most applications. Always start at lower speeds and increase gradually. For wet grinding applications with cooling lubricant, higher speeds may be used. Coolants and lubricants are recommended for continuous operation and extended service life.

Q5: Can this brush be used on stainless steel workpieces without causing contamination?
Yes. The stainless steel wire construction is specifically designed for stainless steel workpieces. Unlike carbon steel brushes that can leave rust particles causing future corrosion, stainless steel filaments will not introduce rust or cross-contamination to stainless steel surfaces. This makes it the preferred choice for stainless steel fabrication, food processing equipment, and marine applications.

Ready to Improve Your Interference-Free Edge Deburring and Weld Cleaning Operations?

Our special-shaped petal stainless steel wire flange disc brushes combine aggressive mechanical cutting power with the interference-free benefits of petal contour design and the large working surface of flange mounting. Available with customizable disc diameters, petal geometries, center hole sizes, and mounting specifications to match your specific weld cleaning, edge deburring, and surface conditioning requirements on workpieces with raised center features.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications – or share your part drawings for custom petal geometry engineering.

Browse our full Disc Brush Series for additional surface finishing solutions, or explore our custom industrial brushes for other specialized requirements.
