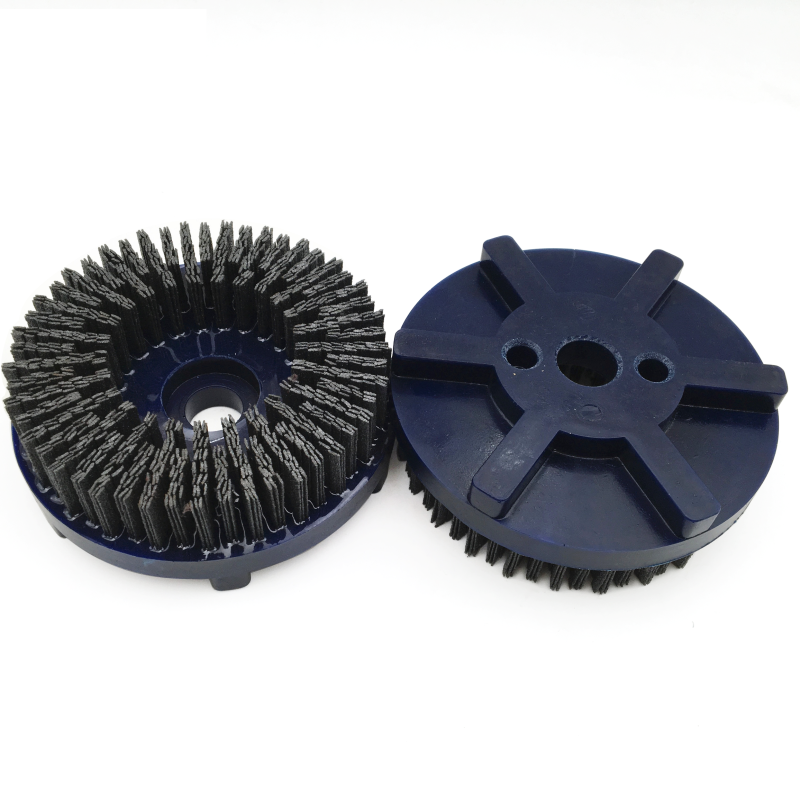

Custom-Arranged Turbine Segmented Silicon Carbide Abrasive Disc Brush:Tailored Filament Layout for Non-Standard Workpiece Deburring

Product Name:

Custom-Arranged Turbine Segmented Silicon Carbide Abrasive Disc Brush – Tailored Filament Layout for Non-Standard Workpiece Deburring

Product Size:

Fully customizable according to customer requirements – disc diameter, center hole size, cluster quantity, filament arrangement pattern, trim length, and mounting configuration (shank or flange) are all tailored to match specific workpiece geometries and equipment specifications. Outer diameters available from 100mm to 600mm.

Product Material Composition:

• Filament Material: Silicon carbide (SiC) abrasive nylon filament – high hardness with aggressive cutting power for efficient deburring, rust removal, and oxide scale stripping. Silicon carbide is sharper and harder than common alternatives, delivering fast burr removal on ferrous metals, cast iron, aluminum, and die-cast alloys. Abrasive grit sizes selectable from 80# (rough grinding) to 400# (finishing).

• Shank / Base Material: Two mounting options available:

  • Shank-mounted version: Steel straight shank for direct collet mounting in CNC machining centers, robotic spindles, and power tools

  • Flange-mounted version: Flange lock mounting design for direct attachment to angle grinders, machine tool flanges, and automated grinding spindles

Product Features and Applications:

Our Custom-Arranged Turbine Segmented Silicon Carbide Abrasive Disc Brush features a fully customizable filament layout that can be configured in turbine, segmented, ring-shaped, petal-style, or other custom patterns based on customer workpiece requirements. The modular segmented cluster construction – with wide chip evacuation gaps between segments – delivers superior heat dissipation and debris clearance for extended continuous operation. Available in two mounting configurations (shank or flange) to suit different equipment and workstation requirements.

Core Advantages:

• Fully Customizable Filament Arrangement – cluster quantity, arrangement pattern, filament angle, and trim length can all be tailored to match specific workpiece contours, stepped surfaces, cavity geometries, and flange faces. Targeted deburring of specific burr locations – ideal for non-standard automated workstations.

• Turbine Segmented Modular Structure – wide chip evacuation slots between segments provide superior debris clearance and heat dissipation, preventing clogging and filament burning during extended continuous operation. Independent segment anchoring resists centrifugal force at high speeds, minimizing filament loss risk.

• Aggressive Silicon Carbide Cutting Power – SiC abrasive delivers sharp, fast-cutting action on aluminum, cast iron, carbon steel, and die-cast alloys. Provides controlled material removal with minimal risk of gouging the workpiece base material under proper parameters.

• Dual Mounting Options – Shank-mounted version for simple chuck mounting, ideal for confined workstations and small-to-medium workpieces. Flange-mounted version for larger working surface area, suitable for robotic arms, machine tools, and handheld grinding equipment – some configurations support individual segment replacement to reduce consumable costs.

• Elastic Buffering and Over-Cut Prevention – segmented clusters provide elastic compliance, adapting to slight surface irregularities with uniform edge radiusing. Reduces over-cutting risk and maintains consistent wear patterns for predictable replacement cycles.

Application Fields:

Automotive Parts Manufacturing:

• Transmission valve bodies, cylinder heads, aluminum die-castings, and steering components – custom filament arrangement targeting cross-hole outlets, stepped surfaces, flange faces, and parting line burrs

Hydraulic Valve Blocks and Pump Bodies:

• Non-standard valve block end faces and multi-step valve components – custom cluster layout targeting oil passage ports for sharp edge radiusing and flash removal

Die-Casting Industry:

• Aluminum and zinc die-cast irregular housings – parting line flash removal, gate mark cleaning, and oxide scale stripping

General CNC Machining:

• Cast iron, carbon steel, and alloy steel non-standard parts – custom brushing轨迹 tailored to part contours for milling and stamping burr removal

Automated Robotic and CNC Finishing Cells:

• Non-standard production lines – custom brush geometry based on 3D workpiece contours for automated定点 deburring

Hardware and Construction Machinery Components:

• Irregular flanges and housing parts – high-volume precision deburring and light chamfering

Comparison – Custom-Arranged vs. Standard Disc Brush:

Frequently Asked Questions (FAQ)

Q1: What filament arrangement patterns are available for custom disc brushes?
We offer fully customizable filament layouts including turbine-style, segmented, ring-shaped, petal-style, and other custom patterns. The arrangement – cluster quantity, angle, density, and trim length – is engineered based on your workpiece geometry, burr locations, and finishing requirements. Contact us with your part drawings for specific recommendations.

Q2: What is the advantage of the turbine segmented structure?
The turbine segmented structure provides wide chip evacuation slots between segments, delivering superior debris clearance and heat dissipation during continuous operation. This prevents clogging and filament burning, extending brush service life. The segmented design also allows filaments to flex into complex geometries, making it ideal for deburring parts with irregular contours.

Q3: What is the difference between shank-mounted and flange-mounted versions?
Shank-mounted versions feature a steel straight shank for direct collet mounting in CNC machining centers, robotic spindles, and power tools – ideal for confined workstations and small-to-medium workpieces. Flange-mounted versions use flange lock mounting for larger working surface area – suitable for angle grinders, machine tool flanges, and automated grinding spindles processing large flat surfaces. Some flange-mounted configurations support individual segment replacement to reduce consumable costs.

Q4: What materials can this brush effectively process and what grit sizes are available?
Silicon carbide disc brushes are effective on aluminum-magnesium alloys, copper-zinc alloys (brass), steel (tensile strength < 900 N/mm²), gray cast iron, and die-cast alloys. Abrasive grit sizes are selectable from 80# (rough grinding for large burr removal) to 400# (finishing for flash removal). Contact our engineering team with your specific material and application requirements for optimal grit recommendations.

Q5: Is this brush suitable for automated CNC and robotic applications?
Yes. Both shank-mounted and flange-mounted versions are designed for integration with CNC machining centers, robotic deburring cells, and automated finishing systems. The custom filament arrangement can be engineered based on 3D workpiece contours for定点 automated deburring. The consistent wear characteristics and predictable service life make it ideal for high-volume automated production with scheduled replacement cycles.

Ready to Customize Your Deburring Brush for Non-Standard Workpieces?

Our custom-arranged turbine segmented silicon carbide abrasive disc brushes offer fully customizable filament layouts, dual mounting options, and aggressive SiC cutting power for non-standard workpiece deburring. Available with customizable disc diameters, cluster configurations, filament patterns, trim lengths, and mounting specifications to match your specific CNC deburring, edge finishing, and surface conditioning requirements.

Contact us for technical recommendations, custom sizing, and bulk order quotes. Provide your application details, workpiece material, and equipment specifications – or share your 3D part drawings for custom filament arrangement engineering.
